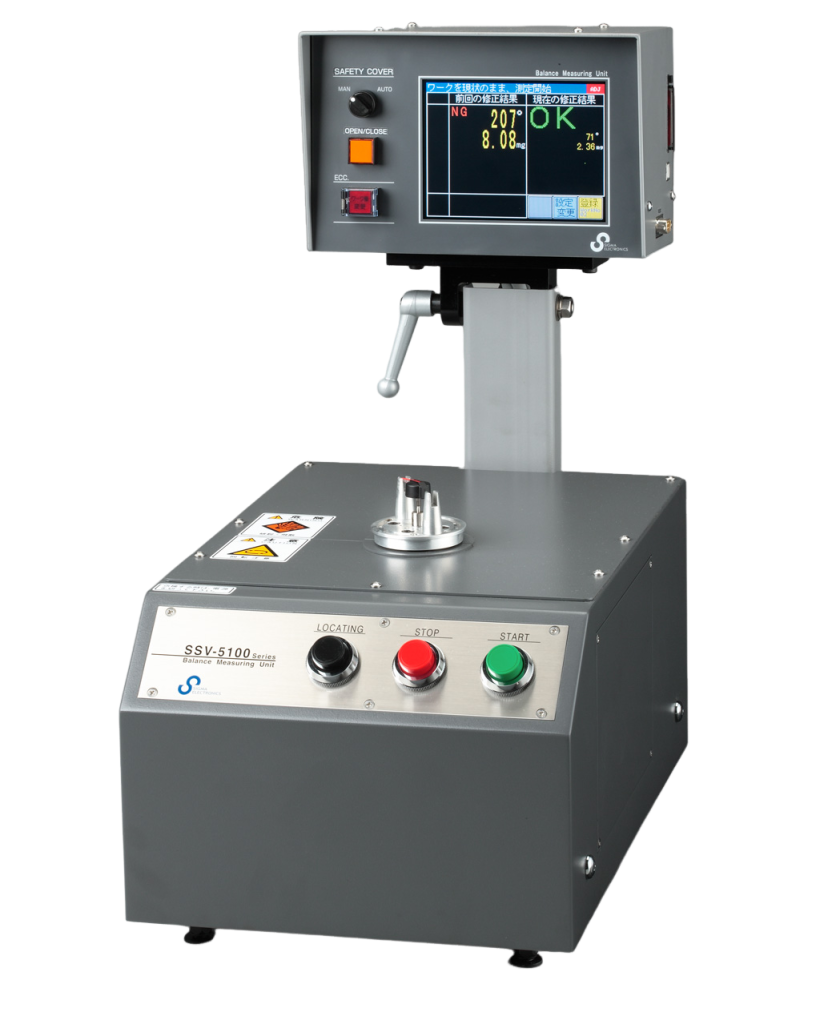

Sigma Electronics SSV-51001 ເຄື່ອງທົດສອບການທົນທານແບບແກນດຽວຕັ້ງໂພງ (1,500 ~ 3,000 rpm)

Workpiece

Max. Mass: 100 g

Max. Diameter: ø100mm

Mechanical unit

Motor: AC servo motor, 30W

Chucking Adapter: Locating pin holes

Balancing speed: 1,500 to 3,000 min-1

Bearing support system: Soft type

Angle of unbalance index: Automatic indexing of spindle

Measuring unit

Balancing plane: 1 plane

Eccentricity correction: Included

Min. Achievable Unbalance: 0.5µm

Graphic display: 5.7" TFT color LCD with touch screen

Min. unbalance indication: 0.001mg

Indication mode: Polar coordinates and (3 to 99) components of unbalance vector (add or remove of unbalance correction masses are selectable)

No. of stored work data: 50 data (No limitation when use with USB memory)

Judgment of measured result: Judgment with set limit value

Data transfer: Measured data can be transferred to PC or stored USB memory -optional

Others

Power supply: Single-phase AC100V

Dimensions: 260(W) x 445(L) x 490(H)mm

Mass: Approx. 30kg
