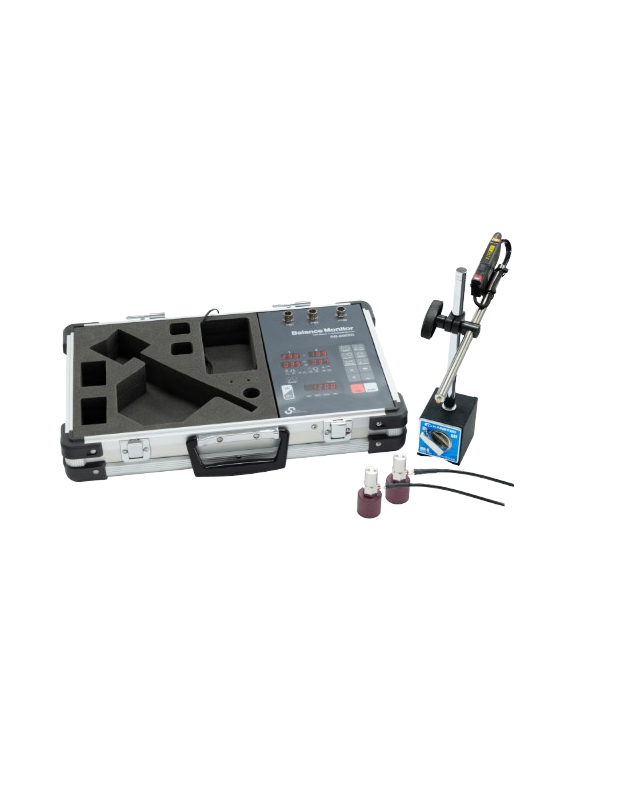

Sigma Electronics SB-8002R ຕິດຕາມການຊົນນ້ຳ (180~ 61000 rpm, 2CH)
【Measurement range】
Applicable Rotors: Rigid Rotor
Balancing Speed: 180min^–1 〜 61,000min^–1
Resolution of rotational speed display: 1 min^–1
Resolution of vibration: 0.001µm
Number of vibration input channel: 2ch
Measuring method: Fixed-speed method
Number of correction plane: 1 to 2
【Correction method】
Polar coordinates: 0°〜359° (angle resolution：1°)
Components of unbalance vector: 3 to 50
Correction weight: Add / Remove
Vibration analysis function
Unbalance Vibration Analysis: Time-series record of unbalanced vibration vectors
Harmonic vibration analysis: Analysis of harmonic components
FFT analyzer: -
OverAll Vibrometer: -
Time waveform: -
【Others】
USB communication port: -
microSD card slot: -
Display: 7-segment LED (Angle position, vibration displacement, revolution)
LED lamp (Measurement condition, Operation display)
Language: Japanese
Power supply: AC adapter: AC100 to 240V ±10% 50/60Hz
Environment
Temperature：5〜40°, Humidity：20〜80％RH（Non-condensing）
Dimension of measuring unit: 385（W）× 120（D）× 255（H）mm（integrated in trank case）
Mass of measuring unit: Approx. 5.0kg（with main unit and all accessories）
