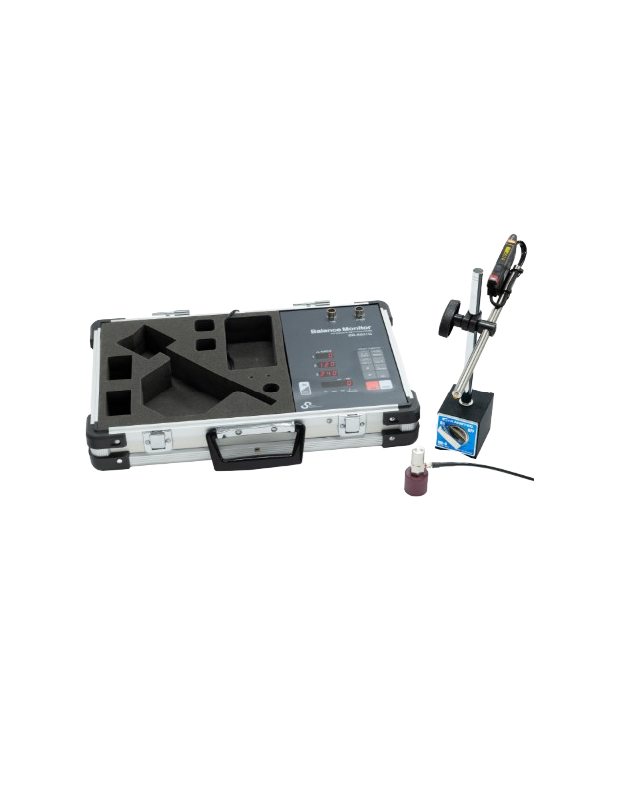

Sigma Electronics SB-8001G ຕິດຕາມການຊົນນ້ຳ (180~ 10000 rpm, 1CH)

Measurement range

Applicable Rotors: Grinding wheel (precision grinder)

Balancing Speed: 180min^–1 〜 10,000min^–1

Resolution of rotational speed display: 1 min^–1

Resolution of vibration: 0.001µm

Number of vibration input channel: 1ch

Measuring method: Fixed-speed method

Number of correction plane: 1

Correction method

Unbalance correction: Single plane balancing with arrangement of 2 or 3 balance weights on the circumference

Others

USB communication port: -

microSD card slot: -

Display: 7-segment LED (Angle position, vibration displacement, revolution)

LED lamp (Measurement condition, Operation display)

Language: Japanese

Power supply: AC adapter: AC100 to 240V ±10% 50/60Hz

Environment

Temperature：5〜40°, Humidity：20〜80％RH（Non-condensing）

Dimension of measuring unit: 385（W）× 120（D）× 255（H）mm（integrated in trank case）

Mass of measuring unit: Approx. 4.3kg（with main unit and all accessories）
