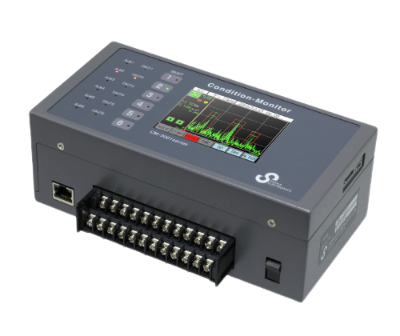

Sigma Electronics CM-3001 ຕວດສະພາບ (20kHz)

Vibration input channels: 1 ~ 6ch *Select at the time of purchase

Speed input channels: 0 ~ 6ch *Select at the time of purchase

Vibration value resolution: Acc.P：1.3% of vibration measurement range

Monitor mode:

【Standard】 OverAll vibration

【Optional】 Freq. band, Unbalance vibration

Signal input: Accelerometer with built-in amplifer (CCLD 4.5mA/DC24V for sensor)

Filter

【HPF】 3Hz / 10Hz / 1kHz　Cutoff characteristics：-24dB/oct

【LPF】 200Hz / 1kHz / 5kHz / 20kHz　Cutoff characteristics：-24dB/oct

Scope of application : OverAll vibration, Freq. band, Timewave form

Alarm

Upper limit 2 steps : Caution / Warning

Thresholds can be set arbitrarily.

Corresponding relay contact turns ON in case of alarm.　

Display unit shows alarm type and status.

Alarm delay function:

0 ~ 99s (In 1 sec. increments)　Immediate alarm when set to 0 sec.

An abnormality is detected when the vibration value exceeding the threshold value continues for more than a set period of time.

Prevents false detection due to sudden disturbance vibration.

Input abnormality detection: Detects sensor disconnection or short circuit and reports an error

*Only when a sensor with built-in amplifier is selected

Alarm return method: Return by touch panel operation or input from external I/O

Automatic threshold setting: Automatic threshold setting relative to normal vibration values

Setting Data Switching: Automatic / Manual / Remotely switchable

Display:

3.5inch color LCD

LED lamp (Display of currently selected setting data number and alarm status)

Panel interface: Touch panel, Swiches for setting data selection

Meas. Value Detection Circuit: Digtal processing method

External I/O

Input : Photo coupler receiver / Item : Monitor start, Alarm reset / Action: On by contact short circuit

Output : 1a contact / Item: Monitoring, Caution, Alarm

USB port: USB mini-B

microSD card slot: Support up to microSD HC (Card not included)

LAN port: Capable of data acquisition and equipment operation via network (Optional)

Power supply: DC24V ±10％, 0.3A

Environment: Temperature : -5 ~ 50℃ (Non-condensing)

Humidity：20 ~ 85%RH

*Only body

Dimension (mm): 196(W) × 100(D) × 72(H)

Weight: 1.2kg
