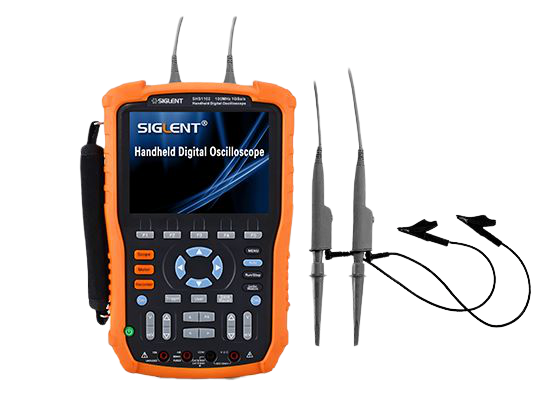

Siglent SHS1062 Handheld Oscilloscope (60Mhz, 1GSa/s)

Scope

Type

SHS1062

Bandwidth

60MHz

Rise Time

≤5.8ns

Real Time Sampling Rate

Single Channel: 1GSa/s,
Double Channels: 500MSa/s

Equivalent Sampling Rate

50GSa/s

Memory Depth

2Mpts

Time Base Range

5 ns/ div – 50s/ div

Scan Range

100ms/ div ～ 50s/ div

Vertical Sensitivity

5mV/div – 100V/div(1-2-5 order)

Vertical Resolution

8 bits

Trigger Types

Edge, Pulse, Video, Slope, Alternative

Frequency Counter

6 bits

Connection

USB Device, USB Host

Math

+, -, * , /, FFT

Oscilloscope Trend Plot

800K points

Meter

Maximum Resolution

6000

DC Voltage

60mV
600mV—1000V

AC Voltage

60mV
600mV—750V

DC Current

60.00mA—600mA
6A—10A

AC Current

60.00mA—600mA
6A—10A

Resistance

600Ω—60MΩ

Capacitance

40nF
400nF--400uF

Diode

0—2V

Continuity

<50Ω Buzzer sounds

Multimeter Trend Plot

1.2M points

channels from earth ground,
between two channels
references

Overvoltage Category

CAT I&CAT II

CAT Ⅲ

between Multimeter input
reference and the ground

Overvoltage Category

CAT I&CAT II

CAT Ⅲ

Max. input Voltage for BNC

Overvoltage Category

1x CAT I&CAT II

1X CAT Ⅲ

10x CAT I&CAT II

10X CAT Ⅲ

Max. input Voltage for
Multimeter input port

Voltage port

Current port(mA)

Current port(A)

Single Channel Common
Mode Rejection, typical

>1000:1 50MHz

Channel-to-Channel
Isolation

>35 dB

General Feature

Display

5.7 inches color TFT-LCD, 320x234

Power supply

With battery or DC adapter to get power from outside

Power source

Built-in rechargeable lithium battery: 7.4V 5000mAh, Battery persisting 4 hours With DC adapter: 100-240V 50/60Hz input 9V 4A output.

Weight

1.5Kg

Dimension

163.2mm×259.5mm×53.3mm
