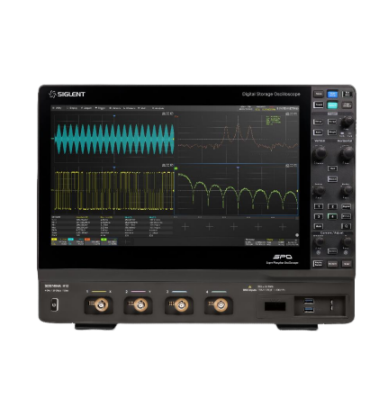

SIGLENT SDS7304A H12 Digital Storage Oscilloscope (4 CH, 3 GHz, 20 GSa/s)

Analog channels: 4 + EXT

Bandwidth: 3 GHz

Sample rate (Max.):

20 GSa/s (dual-channel)

10 GSa/s (3 or 4 channels)

Vertical Resolution: 12-bit, Up to 16-bit in ERES mode

Memory depth (Max.):

Standard: 500 Mpts/ch

Optional: 1 Gpts/ch in dual-channel mode

Waveform capture rate (Max.): 1,000,000 wfm/s

Trigger type: Edge, Slope, Pulse width, Window, Runt, Interval, Dropout, Pattern, Video, Qualified, Nth edge, Setup/hold, Delay, Serial

Serial trigger and decode:

Standard: I2C, SPI, UART, CAN, LIN

Optional: CAN FD, FlexRay, I2S, MIL-STD-1553B, SENT, Manchester (decode only), ARINC429, USB 2.0 (decode only)

Measurement: 50+ parameters，statistics, histogram, trend, and track supported

Math:

4 traces

32 Mpts FFT, +, -, x, ÷, ∫dt, d/dt, √, Identity, Negation, Absolute, Sign, e^x, 10^x, ln, lg, Interpolation, MaxHold, MinHold, ERES, Average, Filter. Supports formula editor

Data analysis: Search, Navigate, History, Mask Test, Digital Voltmeter, Counter, Waveform Histogram, Bode plot and Power Analysis, Eye/Jitter Analysis, SignalScan, Compliance Test (USB 2.0, 100Base-TX, 1000Base-T, 100Base-T1, 1000Base-T1)

Digital channel (optional): 16-channel; maximum sample rate up to 1 GSa/s; record length up to 50 Mpts

Waveform generator (optional): Builit-in, frequency up to 50 MHz, 125 MSa/s sample rate, 16 kpts waveform memory

Processor System: Intel Core i3-8100 or better，32GB memory，250GB storage，Linux operating system

I/O

I/O: 4x USB Host 3.1 Gen 1，2x USB 3.0 Host，USB 2.0 Device (USBTMC)，2x 1000M LAN (VXI11+SCPI， Telnet (5024)+SCPI，Socket (5025)+SCPI，LXI，WebServer)

Display: 1x DVI-D: up to 1920x1200 @ 60Hz; 1x DP 1.2: up to 4096x2304 @ 60Hz; 1x HDMI 1.4: up to 4096x2160 @ 60Hz

Audio: Mic input, Audio Output

Others: External Trigger In, Aux Out (TRIG OUT，PASS/FAIL)，10 MHz In，10 MHz Out

Probe (Standard): 500 MHz, 1 probe supplied for each channel

Display: 15.6” HD TFT-LCD with capacitive touch screen (1920*1080)
