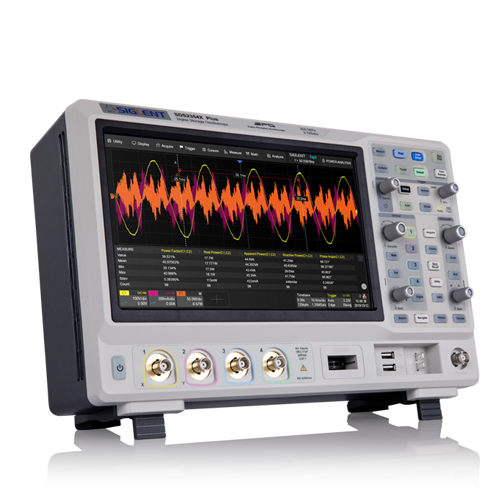

Analog channels: 4+EXT
Bandwidth: 350 MHz, (upgradable to 500MHz)
Sample rate (Max.): 2GSa/s (interleaving mode), 1GSa/s (non-interleaving mode)
Memory depth (Max.): 200Mpts/ch (interleaving mode), 100Mpts/ch (non-interleaving mode)
Waveform capture rate (Max.): 120,000wfm/s (Normal mode); 500,000 wfm/s (Sequence mode)
Vertical resolution: 8-bit. 10-bit mode (with typical 100MHz bandwidth)
Trigger type: Edge, Slope, Pulse, Window, Runt, Interval, Dropout, Pattern, Video and Serial
Serial trigger and decode:
- Standard: I2C, SPI, UART, CAN, LIN
- Optional: CAN FD, FlexRay, I2S, MIL-STD-1553B, SENT, Manchester (decode only)
Measurement: More than 50 parameters, supports statistics with histogram and trend
Digital channel (optional): 16-channel; maximum sample rate up to 1.25 GSa/s; record length up to 62.5 Mpts
Waveform generator (optional): Single channel external USB waveform generator, frequency up to 25 MHz, 125 MSa/s sample rate, 16 kpts waveform memory
I/O: USB Host, USB Device, LAN, Pass/Fail, Trigger Out, 10 MHz In, 10 MHz Out, VGA Output
Probe (standard): SP3050A, 500MHz, 1 probe supplied for each channel
Display: 10.1” TFT-LCD with capacitive touch screen (1024*600)
Standard accessories:
USB cable: 1
Quick start: 1
Passive probe: x4
Certificate of calibration: 1
Power cord: 1
Optional accessories
Waveform generator option (software): SDS2000XP-FG
16 digital channels (software): SDS2000XP-16LA
16-channel logic probe: SPL2016
Power Analysis (software): SDS2000XP-PA
Power Analysis deskew fixture: DF2001A
I2S trigger & decode (software): SDS2000XP-I2S
MIL-STD-1553B trigger & decode (software): SDS2000XP-1553B
FlexRay trigger & decode (software): SDS2000XP-FlexRay
CAN FD trigger & decode (software): SDS2000XP-CANFD
SENT trigger & decode (software): SDS2000XP-SENT
Manchester decode (software): SDS2000XP-Manch
100 MHz to 200 MHz bandwidth upgrade (4-ch model) (software): SDS2000XP-4BW02
200 MHz to 350 MHz bandwidth upgrade (4-ch model) (software): SDS2000XP-4BW03
350 MHz to 500 MHz bandwidth upgrade (4-ch model) (software): SDS2000XP-4BW05
ISFE isolated front end: ISFE
STB3 demo signal source: STB3
High voltage probe: HPB4010
High voltage differential probe: DPB1300/DPB4080/DPB5150/DPB5150A/DPB5700/DPB5700A
Current probe: CPL5100/CP4020/CP4050/CP4070/CP4070A/CP5030/CP5030A/CP5150/CP5500
Bag: BAG-S2
