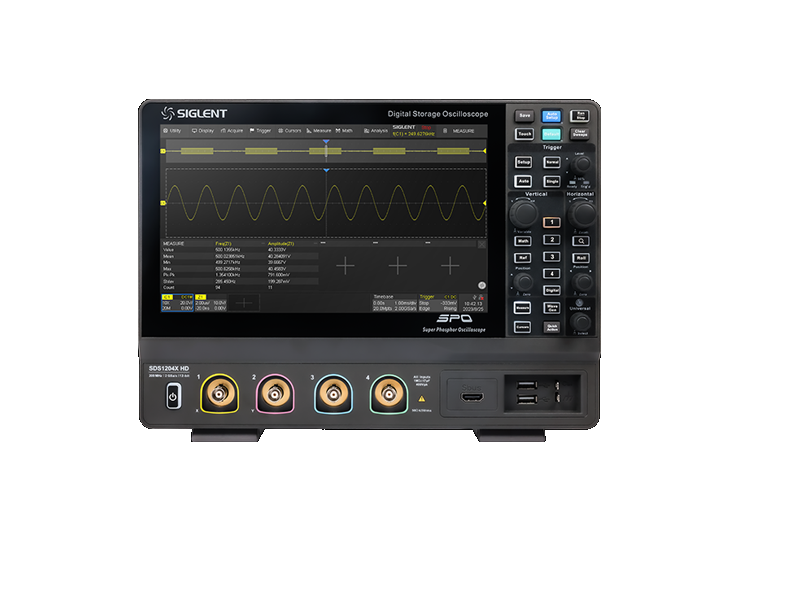

Analog channels: 4 + EXT
Bandwidth: 200 MHz
Vertical resolution: 12-bit
Sample rate (Max.):
+ One channel mode: 2 GSa/s,
+ Two channel mode: 1 GSa/s,
+ Four channel mode: 500 MSa/s
Memory depth (Max.):
+ One channel mode: 100 Mpts/ch,
+ Two channel mode: 50 Mpts/ch,
+ Four channel mode: 25 Mpts/ch
Waveform capture rate (Max.)
+ Normal mode : 120,000 wfm/s;
+ Sequence mode : 500,000 wfm/s
Trigger type: Edge, Slope, Pulse width, Window, Runt, Interval, Dropout, Pattern, Video,
Qualified, Nth edge, Delay, Setup/Hold time, Serial
Serial trigger and decode(Standard): I2C, SPI, UART, CAN, LIN, CAN FD(Decode Only), FlexRay(Decode Only)
Measurement: 50+ parameters, statistics, histogram, trend, and track supported
Math:
+ 4 traces
+ 2 Mpts FFT, Filter, +, -, x, ÷, ∫dt, d/dt, √, Identity, Negation, Absolute, Sign, ex, 10x, ln, lg, Interpolation, MaxHold, MinHold, ERES, Average. Supports formula editor
Data analysis: Search, Navigate, History, Mask Test, Counter, Bode plot, and Power Analysis
Digital channel (optional): 16-channel; maximum sample rate up to 1 GSa/s; record length up to 10 Mpts
USB AWG module (option): One channel, 25 MHz, sample rate of 125 MHz, wave length of 16 kpts, isolated output
I/O: USB 2.0 Host x2, USB 2.0 Device, 10 M / 100 M LAN, Auxiliary output (TRIG OUT, PASS/FAIL), SBUS (Siglent MSO)
Probe (Standard): Passive probe PP215 for each channel
Display: 10.1 TFT-LCD with capacitive touch screen (1024*600)
