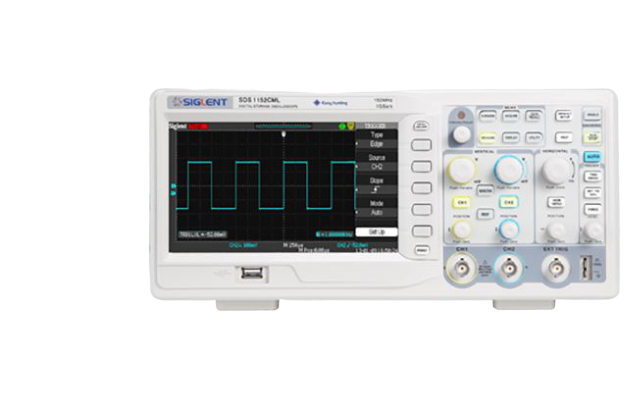

Siglent SDS1102CML Digital Oscilloscope (100Mhz, 2Ch, 1GSa/s)

Model

SDS1102CML

Bandwidth

100MHz

Channels

2CH+1EXT

Real time sampling rate

1GSa/s

Equivalent sampling rate

50GSa/s

Memory depth

2Mpts

Rise time

< 3.5ns

Input impedance

1MΩ‖17pF

Time base range

2.5ns/div-50s/div

Scan: 100ms-50s/div

Vertical sensitivity

2mV-10V/div

Vertical resolution

8bit

Trigger source

CH1, CH2, Ext, Ext/5, AC Line

Trigger types

Edge, Pulse, Video, Slope, Alternative

Math Operation

+, -, ×, ÷, FFT

Digital filter

High pass, Low pass, Band pass, Band Stop

Max input voltage

±400V (DC+AC Pk-Pk), CAT I, CAT II

Internal storage

2 groups of reference waveform, 20 groups of setting, 10 groups of waveform

External storage

Bitmap save, CSV save, Waveform save, Setting save

Language

English, French, German, Russian, Spanish, Simplified Chinese, Traditional Chinese, Portuguese, Japanese, Korean, Italian, Arabic

Interface

USB Host, USB Device, RS-232, Pass/Fail out

Display

7 inches(178mm) color TFT(480*234) LCD

Power

AC 100-240V, 45Hz-440Hz, 50VA Max

PC software

Can through the computer remote control oscilloscope, extraction waveform analysis data

Remark

With original source seamless connection, form signal collection, produce integration system

Detailed performance parameters and technical index please refer to《SDS1000CML Series Datasheet》
