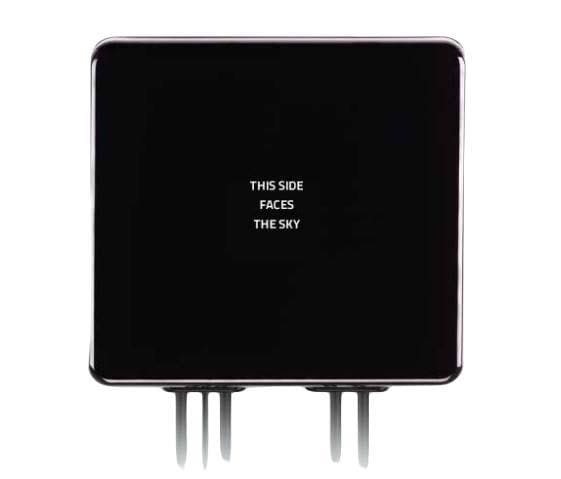

Sierra Wireless 6001432 ແຜ່ນລະບົບລະບົບ 5in1 Flat Panel Antenna - 4x5G, GNSS, ຕິດກັບການຕິດຕັ້ງ, 3m, FAKRA, ສີດຳ

Gain: 4.76 dBi

VSWR: 2:1

Style: Flat Panel

Width: 134 mm

Height: 20 mm

Length: 146 mm

IP Rating: IP67

Impedance: 50 Ohms

Cable Type: RG-174, KSR200-P

Application: 4G/5G, GNSS, GPS

Cable Length: 3 m

Mounting Style: Adhesive Mount

Number of Bands: 5 Band

Mechanical Style: Flat Panel

Maximum Frequency: 960 MHz, 1.612 GHz, 6 GHz

Minimum Frequency: 617 MHz, 1.427 GHz, 1.562 GHz

Termination Style: FAKRA Connector

Antenna Connector Type: FAKRA C, FAKRA D

Protocol - GPS, GLONASS: GNSS, GPS

Maximum Operating Temperature: + 85 C

Minimum Operating Temperature: - 40 C

Protocol - Cellular, NBIoT, LTE: 4G/5G
