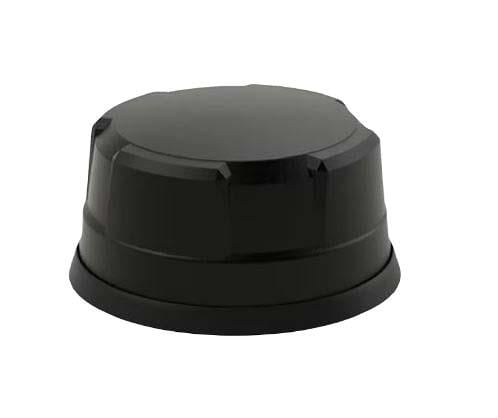

Sierra Wireless 6001399 ໂດມ 9in1 ໂດມ ອະນຕີນາ 4x5G/LTE, GNSS, 4xWi-Fi 2.4/5GHz, ຕິດຕັ້ງດ້ວຍສະໝຸດ Bolt, 5m, Fakra ສີດໍາ

Gain: 6.7 dBi, 7.2 dBi, 26 dB

VSWR: 2.1

Style: Sharkfin

Width: 142 mm

Height: 82 mm

Length: 253 mm

IP Rating: IP69K

Impedance: 50 Ohms

Cable Type: CS29, CS32

Application: 4G/5G, GNSS, GPS, WiFi

Cable Length: 4 m

Mounting Style: Screw Mount

Electrical Type: MIMO

Number of Bands: 9 Band

Mechanical Style: Dome

Maximum Frequency: 960 MHz, 1.612 GHz, 2.4 GHz, 6 GHz

Minimum Frequency: 617 MHz, 1.427 GHz, 1.562 GHz, 2.4 GHz, 5 GHz

Termination Style: FAKRA Connector

Antenna Connector Type: FAKRA C, FAKRA D, FAKRA I

Protocol - GPS, GLONASS: GNSS, GPS

Protocol - WiFi - 802.11: WiFi

Maximum Operating Temperature: + 80 C

Minimum Operating Temperature: - 40 C

Protocol - Cellular, NBIoT, LTE: 4G/5G
