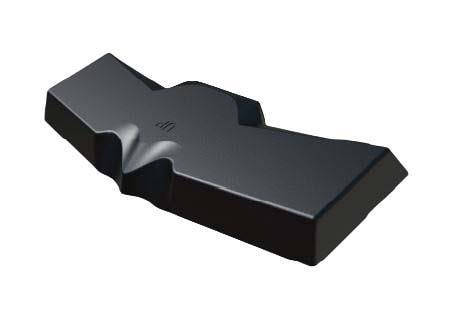

Sierra Wireless 6001200 ອານເຕນນລະບົບລົດ 3in1 BAT Antenna - 2xLTE, GNSS, ຕິດກັບດ້ວຍການຫຼັກສາ, 3m, ສີດໍາ

Gain: 5 dBi, 26 dB

VSWR: 2:1, 2.5:1

Style: BAT

Width: 77 mm

Height: 16.5 mm

Length: 214 mm

Cable Type: CS29, RG174

Cable Length: 3 m

Power Rating: 25 W

Mounting Style: Adhesive Mount

Number of Bands: 3 Band

Maximum Frequency: 960 MHz, 1.612 GHz, 3.8 GHz, 6 GHz

Minimum Frequency: 698 MHz, 1.562 GHz, 1.71 GHz, 4.9 GHz

Termination Style: SMA Male

Antenna Connector Type: SMA Plug

Protocol - GPS, GLONASS: BeiDou, Galileo, GLONASS, GPS

Maximum Operating Temperature: + 70 C

Minimum Operating Temperature: - 30 C

Protocol - Cellular, NBIoT, LTE: 2G/3G/4G
