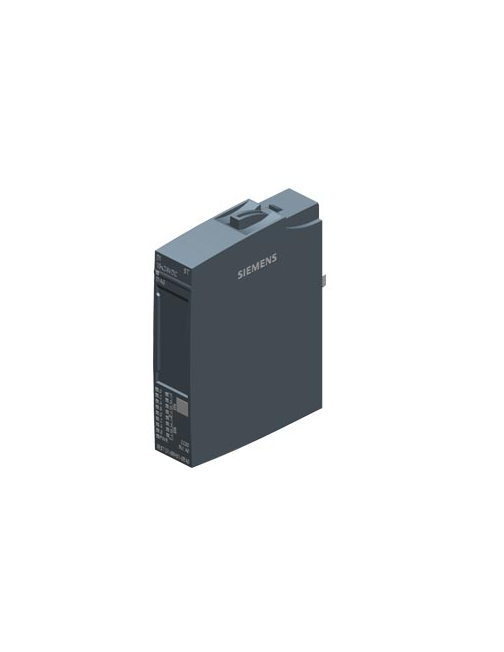

SIEMENS 6ES7131-6BH01-0BA0 ໂມດູນປ້ອນຂໍ້ມູນດິຈິຕອນ SIMATIC ET 200SP
HW functional status: From FS02
Firmware version: V0.0
FW update possible: No
usable BaseUnits: BU type A0
Color code for module-specific color identification plate: CC00
Product function
I&M data: Yes; I&M0 to I&M3
Isochronous mode: No
suitable for operation on PROFINET R1 IMs: Yes
Engineering with
STEP 7 TIA Portal configurable/integrated from version: V14
STEP 7 configurable/integrated from version: V5.5 SP3
PCS 7 configurable/integrated from version: V8.1 SP1
PCS neo can be configured/integrated from version: from V1.0.0
PROFIBUS from GSD version/GSD revision: One GSD file each, Revision 3 and 5 and higher
PROFINET from GSD version/GSD revision: GSDML V2.3
Operating mode
DI Yes
Counter No
Oversampling No
MSI No
Supply voltage
Rated value (DC): 24 V
permissible range, lower limit (DC): 19.2 V
permissible range, upper limit (DC): 28.8 V
Reverse polarity protection": Yes
Input current
Current consumption, max.: 90 mA
Encoder supply
24 V encoder supply
24 V: No
Power loss
Power loss, typ.: 1.7 W
Address area
Address space per module
Inputs: 2 byte; + 2 bytes for QI information
