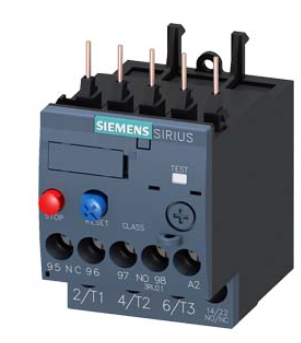

SIEMENS 3RU2116-1HB0 Thermal Overload Relay
Size of overload relay: S00
Power loss [W] for rated value of the current at AC in hot operating state: 6.6 W
Per pole: 2.2 W
Insulation voltage with degree of pollution 3 at AC rated value: 690 V
Surge voltage resistance rated value: 6 kV
Maximum permissible voltage for protective separation in networks with grounded star point
Between auxiliary and auxiliary circuit: 440 V
Between auxiliary and auxiliary circuit: 440 V
Between main and auxiliary circuit: 440 V
Between main and auxiliary circuit: 440 V
Ambient conditions
Installation altitude at height above sea level maximum 2 000 m
Ambient temperature
during operation: -40 ~ +70 °C
during storage: -55 ~ +80 °C
during transport: -55 ~ +80 °C
Temperature compensation: -40 ~ +60 °C
Relative humidity during operation: 10 ~ 95 %
