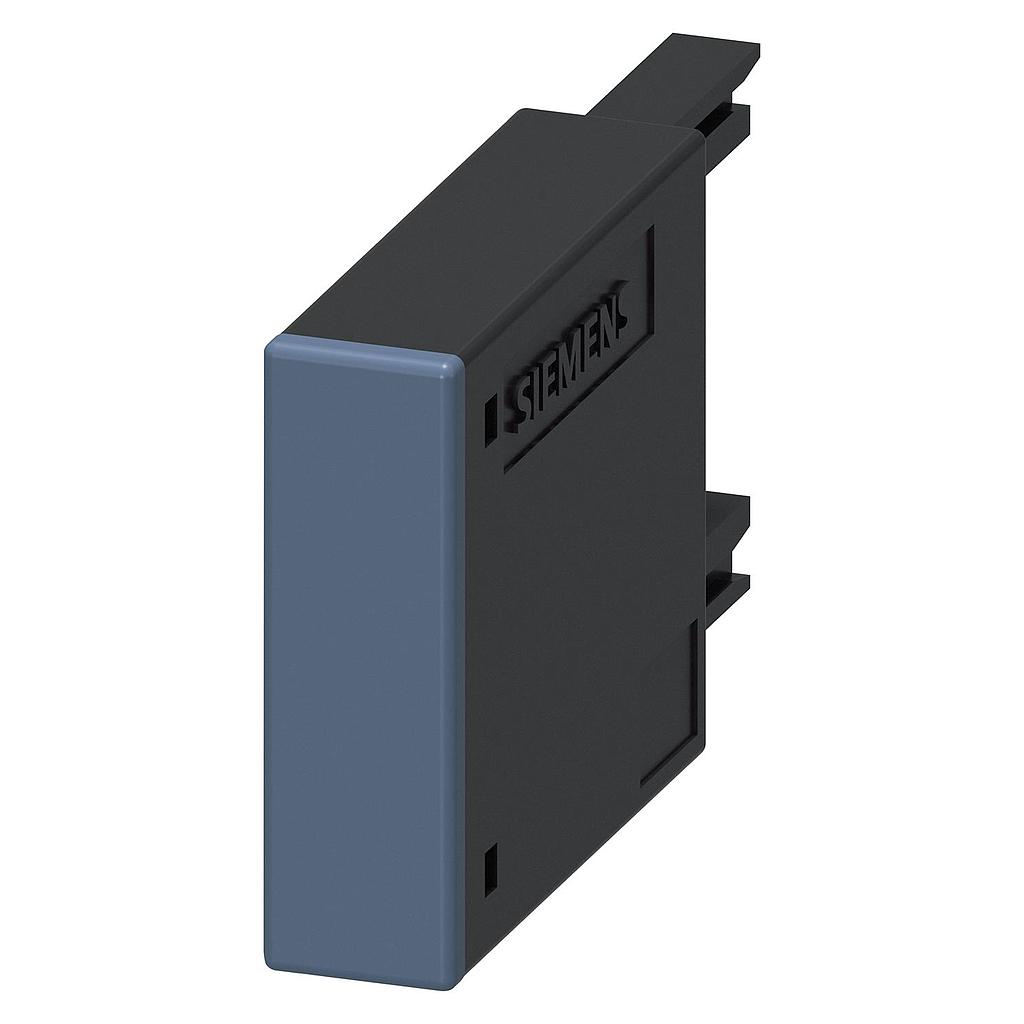

product brand name : SIRIUS
product category : Surge suppressor
product designation : Varistor
General technical data
size of contactor S00
Substance Prohibitance (Date) 10/01/2009
SVHC substance name Lead - 7439-92-1
type of voltage of the control supply voltage AC/DC
control supply voltage 1 at AC
● at 50 Hz 127 ... 240 V
● at 60 Hz 127 ... 240 V
control supply voltage frequency
● 1 rated value 50 Hz
● 2 rated value 60 Hz
control supply voltage 1 at DC
● 150 ... 250 V
design of the surge suppressor Varistor
Ambient conditions
ambient temperature
● during operation -25 ... +60 °C
● during storage -40 ... +80 °C
Installation/ mounting/ dimensions
mounting position any
fastening method clip-on
height 46 mm
width 28 mm
depth 9 mm
