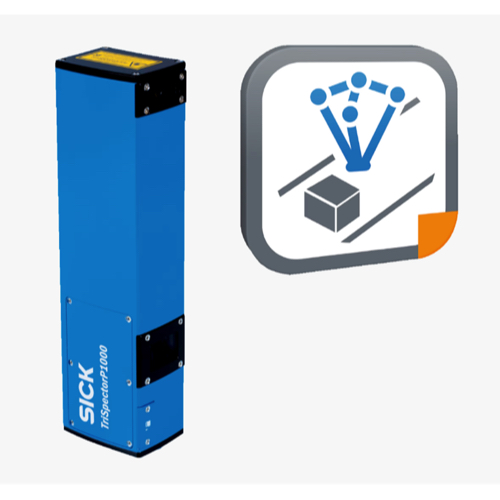

SICK V3T13P-MR62A8S50 TriSpectorP1000 - 3D ເຄື່ອງຈັກ (291 mm~1,091 mm; 540 mm x 200 mm)
Technology: 3D triangulation
Toolkit: Shape detection, fixed plane, area detection
Working Distance: 291 mm... 1,091 mm
Field of View (FOV): 540 mm x 200 mm
Illumination: Integrated
Illumination Color: Red, laser, Visible, 660 nm, ± 7 nm
Laser Class: 2 (EN 60825-1:2014+A11:2021; IEC 60825-1:2014, Complies with the FDA performance requirements for laser products except for conformance with IEC 60825-1 Ed.3., as described in Laser Notice 56 dated May 8, 2019.)
Width at Minimum Operating Distance: 180 mm
Width at Maximum Operating Distance: 660 mm
Max Height Range: 800 mm
Image Angle: 67°
Offline Support: Emulation
Connection Type: M12, 12-pin male connector, A-coded (power supply, I/O). M12, 8-pin female connector, X-coded (Gigabit Ethernet). M12, 8-pin female connector, A-coded (encoder)
Supply Voltage: 24V DC, ± 20%
Power Consumption: 11 W
Current Consumption: < 400 mA, no output load
Enclosure Rating: IP67
Weight: 1.7 kg
Dimensions (L x W x H): 307 mm x 62 mm x 84 mm
