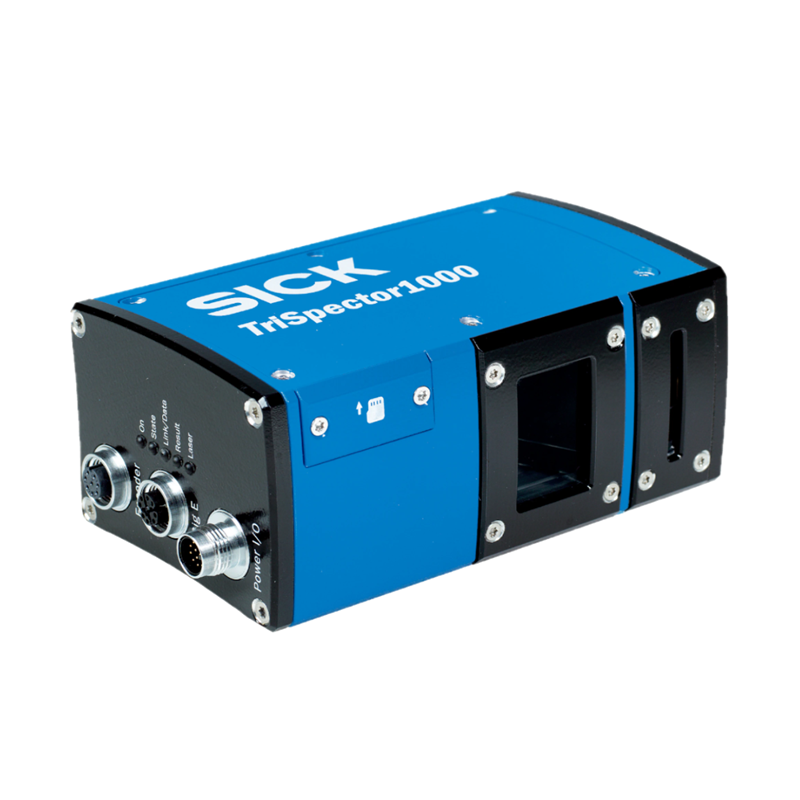

SICK V3T11S-MR12A8 TriSpectorP1000 - 3D ເຄື່ອງຈັກ (56 mm ~116 mm; 65 mm x 15 mm)
Technology: 3D triangulation
Toolkit: Shape definition, fixed plane, area detection
Working distance: 56 mm ... 116 mm
Field of view (sample): 65 mm x 15 mm
Illumination: Integrated
Illumination color: Red, laser, Visible, 660 nm, ± 7 nm
Laser class: 2 (EN 60825-1:2014+A11:2021; IEC 60825-1:2014, Complies with the FDA performance requirements for laser products except for conformance with IEC 60825-1 Ed.3., as described in Laser Notice 56 dated May 8, 2019.)
Width at minimum operating distance: 40 mm
Width at maximum operating distance: 75mm
Maximum height range: 60mm
Image angle: 65°
Offline support: Emulation
Connection type: M12, 12-pin male connector, A-coded (voltage supply, I/O). M12, 8-pin female connector, X-coded (Gigabit Ethernet). M12, 8-pin female connector, A-coded (encoder)
Supply voltage: 24V DC, ± 20%
Power consumption: 11 W
Current consumption: < 400 mA, without output load
Standard: IP67
Weight: 0.9kg
Dimensions (L x W x H): 136 mm x 62 mm x 84 mm
