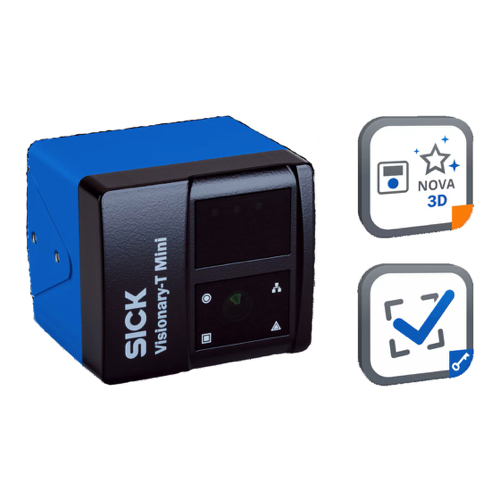

SICK V3S145-1AAAABA NOVA QI Visionary -T Mini AP - 3D Machine Vision (≤ 16 m; 70° x 60°)
Technology: 3D snapshot time-of-flight
SensorApp: Nova Visionary-T Mini, installed
Working distance: ≤ 16 m
Detection angle: 70° x 60°
Angular resolution: 0.14° x 0.14°
Illumination: Integrated
Illumination color: Infrared, laser, invisible, 855 nm, ± 5 nm
Laser class: 1, P0 < 17 mW, t < 25 ns (EN/IEC 60825-1:2007, IEC 60825-1:2014, EN 60825-1:2014+A11:2021)
Connection type: Power/I/O: M12 8-pin, A-coded. Gigabit Ethernet: M12, 8-pin, X-coded.
Supply voltage: 24 V DC
Power consumption: < 12 W, Typical (without digital I/Os)
Current consumption (max.): 2 A
Enclosure rating: IP65, IP67
Weight: 520 g
Dimensions (L x W x H): 80 mm x 70 mm x 77 mm
Processor: 1.8 GHz, 4 × ARM Cortex
Scan/frame rate: ≤ 30 fps
Configuration software: SOPAS Engineering Tool / Telegram interface / API (C++) / SICK AppManager / SICK AppStudio / Web-Interface / Telegram interface (depending on type)
Ethernet: TCP/IP, UDP/IP
Enclosure rating: IP65, IP67
