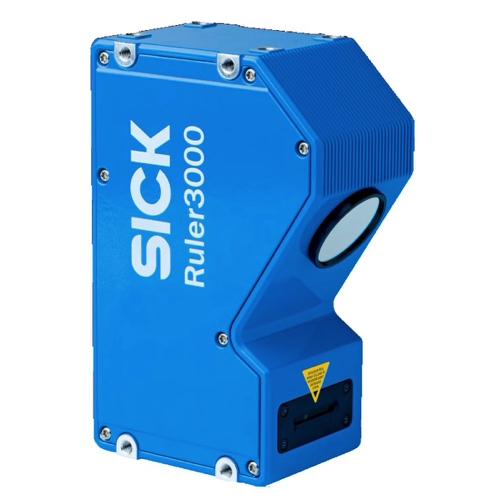

SICK V3DX3-010BR21A Ruler3000 - 3D ການມອງເຄື່ອງຈັກ (99 mm ~ 149 mm; 40 mm x 12 mm)
Technology: 3D triangulation
Shutter technology: Global shutter
Working distance: 99 mm ... 149 mm
Field of view (sample): 40 mm x 12 mm
Exposure mode: Linear, HDR
Illumination: Integrated
Illumination color: Blue, laser, Visible, 450 nm, ± 10 n
Laser class: 3R (EN 60825-1:2014+A11:2021; IEC 60825-1:2014, Complies with the FDA performance requirements for laser products except for conformance with IEC 60825-1 Ed.3., as described in Laser Notice 56 dated May 8, 2019.)
Connection type: Voltage – I/O: M12, 17-pin male. Gigabit Ethernet: M12, 8-pin female connector, X-coded
Supply voltage: 24V DC, ± 10%
Power consumption: ≤ 12 W
Current consumption: ≤ 1.5 A
Enclosure rating: IP65, IP67
Weight: 1.2 kg
Dimensions (L x W x H): 151.5 mm x 60.3 mm x 100 mm
