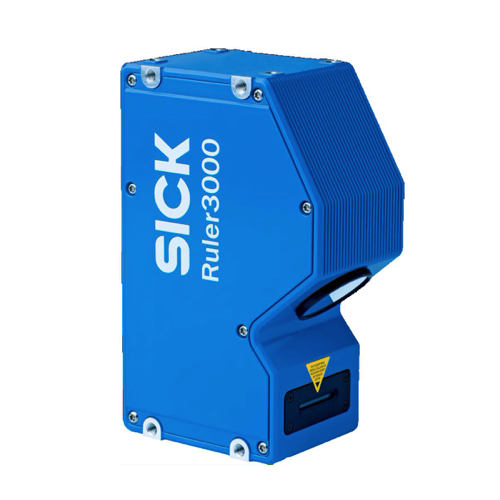

SICK V3DX3-002BR21A Ruler3000 - 3D ການມອງເຄື່ອງຈັກ (46.7 mm ~ 55.4 mm; 25 mm x 6 mm)
Technology: 3D triangulation
Shutter technology: Global shutter
Working distance: 46.7 mm ... 55.4 mm
Field of view (sample): 25 mm x 6 mm
Exposure mode: Linear, HDR
Illumination: Integrated
Illumination color: Blue, laser, Visible, 450 nm, ± 10 nm
Laser class: 3R (EN 60825-1:2014+A11:2021; IEC 60825-1:2014, Complies with the FDA performance requirements for laser products except for conformance with IEC 60825-1 Ed.3., as described in Laser Notice 56 dated May 8, 2019.)
Connection type: Voltage – I/O: M12, 17-pin male. Gigabit Ethernet: M12, 8-pin female connector, X-coded
Supply voltage: 24V DC, ± 10%
Power consumption: ≤ 12 W
Current consumption: ≤ 1.5 A
Enclosure rating: IP65, IP67
Weight: 1.08 kg
Dimensions (L x W x H): 154 mm x 60.3 mm x 100 mm
