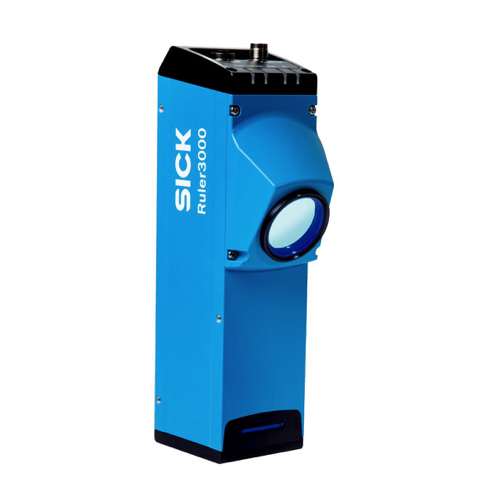

SICK V3DU3-020RM25A Ruler3000 - 3D ການມອງເຄື່ອງຈັກ (245.5 mm ... 370.5 mm; 190 mm x 50 mm)
Technology: 3D triangulation
Shutter technology: Global shutter
Working distance: 245.5 mm ... 370.5 mm
Field of view (sample): 190 mm x 50 mm
Exposure mode: Linear, HDR
Illumination: Integrated
Illumination color: Red, laser, Visible, 660 nm, ± 15 nm
Laser class: 2 (EN 60825-1:2014+A11:2021; IEC 60825-1:2014, Complies with the FDA performance requirements for laser products except for conformance with IEC 60825-1 Ed.3., as described in Laser Notice 56 dated May 8, 2019.)
Connection type: Voltage – I/O: M12, 17-pin male. Gigabit Ethernet: M12, 8-pin female connector, X-coded
Supply voltage: 24V DC, ± 10%
Power consumption: ≤ 12 W
Current consumption: ≤ 1.5 A
Enclosure rating: IP65, IP67
Weight: 1.8 kg
Dimensions (L x W x H): 245 mm x 65 mm x 108 mm
