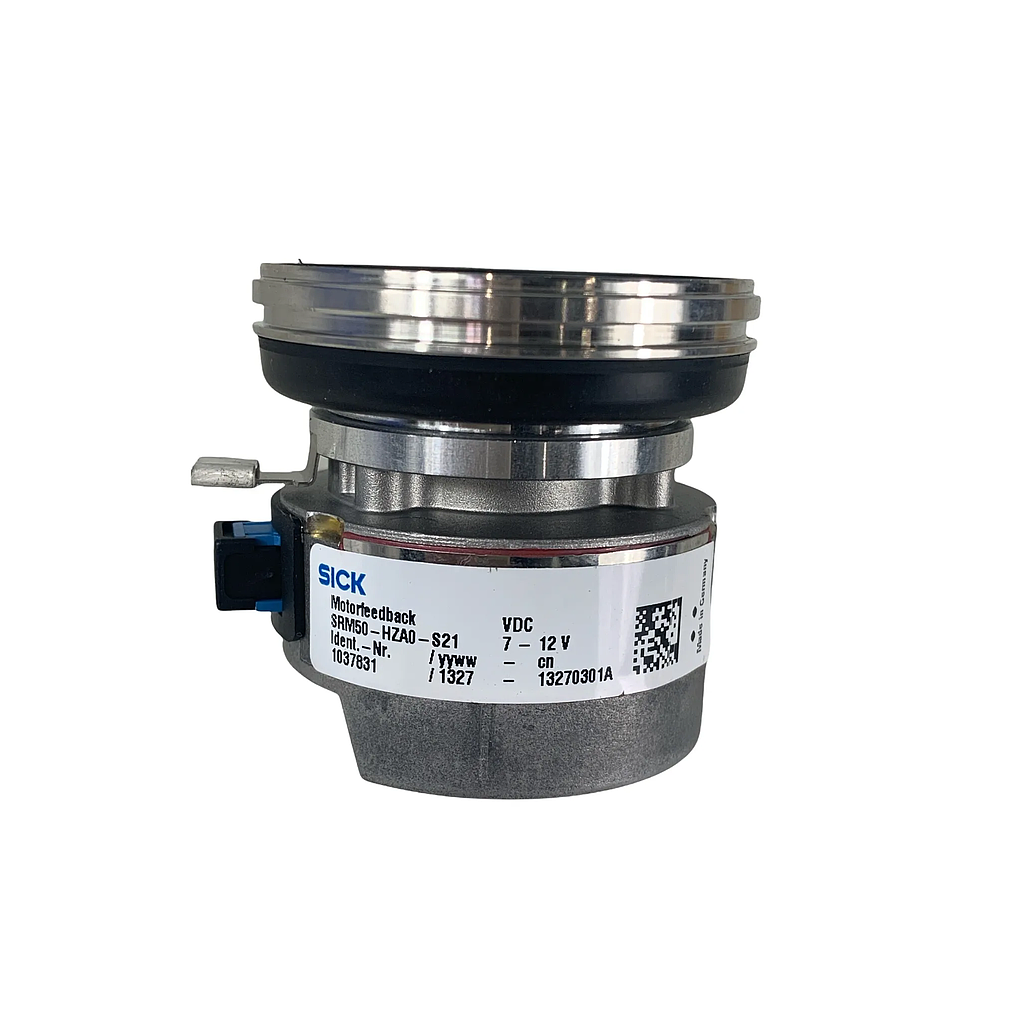

Sine/cosine periods per revolution: 1,024
Number of the absolute ascertainable revolutions: 1
Total number of steps: 32,768
Measuring step: 0.3 ″ For interpolation of the sine/cosine signals with, e. g., 12 bits
Integral non-linearity: Typ. ± 45 ″, Error limits for evaluating sine/cosine period, without mechanical tension of the stator coupling
Differential non-linearity: ± 7 ″, Non-linearity within a sine/cosine period
Operating speed: ≤ 6,000 min⁻¹, up to which the absolute position can be reliably produced
Available memory area: 1,792 Byte
System accuracy: ± 52 ″
Interfaces:
Type of code for the absolute value: Binary
Electronics
Connection type: Cable, 8-wire, radial, 2 m
Supply voltage: 7 V DC ... 12 V DC
Recommended supply voltage: 8 V DC
Current consumption: 80 mA (1)
Output frequency for sine/cosine signals: ≤ 200 kHz
||(1) Without load.
Mechanics
Shaft version: Tapered shaft
Flange type / stator coupling: Spring mounting plate, Spring mounting plate
Weight: ≤ 0.2 kg
Moment of inertia of the rotor: 10 gcm²
Operating speed ≤ 12,000 min⁻¹
Angular acceleration: ≤ 200,000 rad/s²
Operating torque: 0.2 Ncm
Start up torque: + 0.4 Ncm
Permissible radial shaft movement: ± 0.6 mm
Permissible axial shaft movement: ± 0.95 mm
Permissible movement static:
± 0.2 mm, radial
± 0.8 mm, axial
Permissible movement dynamic:
± 0.15 mm, radial
± 0.2 mm, axial
Angular motion perpendicular to the rotational axis, static: ± 0.005 mm/mm
Angular motion perpendicular to the rotational axis, dynamic: ± 0.0025 mm/mm
Life of ball bearings: 3.6 x 10^9 revolutions
Ambient data
Operating temperature range: –30 °C ... +115 °C
Storage temperature range: –40 °C ... +125 °C, without package
Relative humidity/condensation: 90 %, Condensation not permitted
Resistance to shocks: 100 g, 10 ms, 10 ms (according to EN 60068-2-27)
Frequency range of resistance to vibrations: 20 g, 10 Hz ... 2,000 Hz (EN 60068-2-6)
EMC According to EN 61000-6-2 and EN 61000-6-3 1)
Enclosure rating IP40, with mating plug inserted (IEC 60529)
Operating height (above sea level): 2,000 m
