Detector: Triaxial servo-type accelerometer, resolution: Not exceeding 1 µG
Output sensitivity: Acceleration: 5V/10m/s²; Velocity: 5V/10mm/s; Displacement: 5V/100 µm
Output terminals: RO1 type 6 pin connector
Frequency range:
DC acceleration: DC-100Hz (±10%)
AC acceleration: 0.5-100Hz (±10%)
Velocity: 1-100Hz (±10%)
Displacement: 1-100Hz (±10%)
Low-pass filter : 200Hz
Accuracy: ±3% (16Hz, 5m/s², room temperature)
Noise: DC acceleration: Up to 0.001m/s2; AC acceleration/velocity/ displacement: Up to 2 µG (When using internal battery)
Shock resistance: 1,000m/s2,5ms
DC cancel function: Simultaneously cancel all three axes to zero with the DC cancel button.
Temperature range: -10~60℃
Power supply: Rechargeable sealed lead battery, usable for at least 5 hours continuously.
Battery alarm: Green LED goes out when battery level is low.

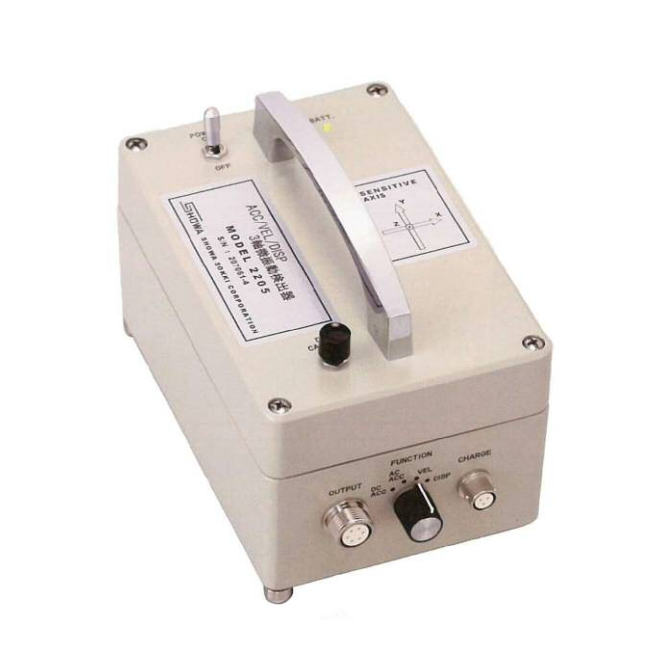

Dimensions and weight: See the external diagram, approx. 2kg
Options
MODEL-2205-80 Charger
MODEL-2205-81 AC Adapter
MODEL-2205-91 Output Cable (RO1 at body end, BNCX3 at output enend)
