Acceleration measurement range: Hi(Peak) 1 ~ 1999m/s²/Lo(Peak) 0.1 ~ 199.9m/s2
Velocity measurement range : Hi(RMS) 1 ~ 1999mm/s/Lo(RMS) 0.1 ~ 199.9mm/s
Displacement measurement range: Hi(P-P) 0.01 ~ 19.99mm/Lo(P-P) 0.001 ~ 1.999mm
Frequency range:
+ Acceleration: 5 to 5,000 Hz (±1 dB), 5 to 10,000 Hz (±3 dB)
+ Velocity: 10 to 1,000 Hz (complies with ISO 2954 - Requirements for instruments for measuring vibration severity)
+ Displacement: 10 to 1,000 Hz (±1 dB)
Measurement precision 80Hz, 1/2FS 23±5°C:
+ Acceleration ±3%, ±1 digit;
+ Velocity ±5%, ±1 digit;
+ Displacement ±5%, ±1 digit
Temperature range: sensor:: -20- 110°C, Amplifier: :-10 - 50°C
AC output: ±2V (full scale)
Power supply: LR6alkal. 2pc, continously operable forast 30 hours or more
Dimensions and weight (body): 75(W)×130(H)X24(D) mm, approx 200g
Sensor : MODEL - 2304A

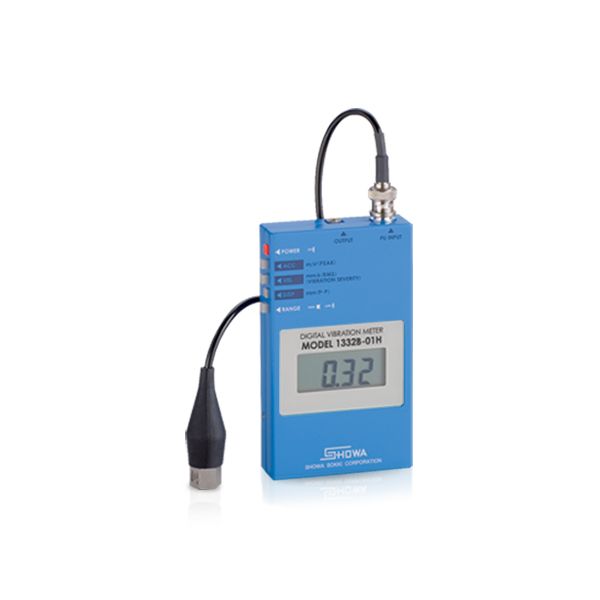

Configuration of DIGI-VIBRO MODEL-1332B Standard type
Main unit, MODEL-1332B, 1 pc
L contact pin, LC-90, 1 pc
Portable case, 1 pc
Piezoelectric acceleration sensor, MODEL-2304A, 1 pc
Magnet, MG-1, 1 pc
Operation manual, 1 copy
Low noise cable (1.5 m), LNC-3F-1.5, 1 pc
LR6, 2 pc
