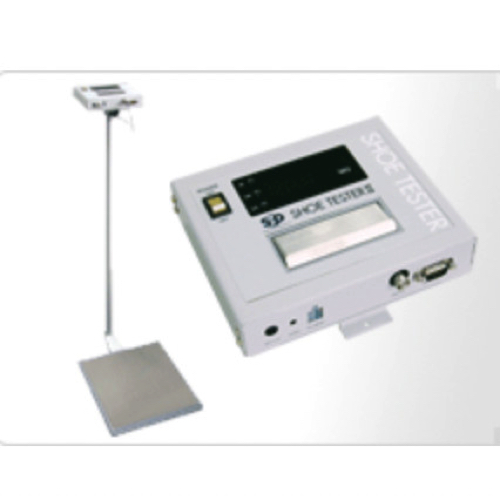

Shishido SHOETESTERⅡ ເຄື່ອງມືວັດແທກໄຟຟ້າສະຖິດ (0-200 MΩ)
Measurment voltage: 10VDC
Measurment accuracy: ±10%+2digit
Measuring Range: 0.00 to 200.0MΩ
Upper limit value: 1,5,10,20,35,50,100MΩ
Lower limit value: 0.1,0.5,1,5,10MΩ
Alarm: If the measured value is within range: OK light (green)
If the measured value exceeds the maximum value: HI light (red)
If the measured value is under the minimum value: LOW light (red)
Buzzer ON/OFF mode: 1:measurement results
2:measurement complete
Function check: Ohm self check button, 0.95 to 1.05MΩ
(Display green)
Power supply: DC12V AC Adapter(100 to 240VAC)
Dimensions: Main unit: 170×140×37mm(W×D×H)
Measurement stand: 320×320×23mm(W×D×H)
Weight: Main unit: 0.9kg
Footplate: 4.5kg
Option:
Support pole with amgle adjustment function: OPSHT2-PA
OK/NG signal cable: OPSHT2-SCA
RS-232C cable: OPSHT2-RCA
