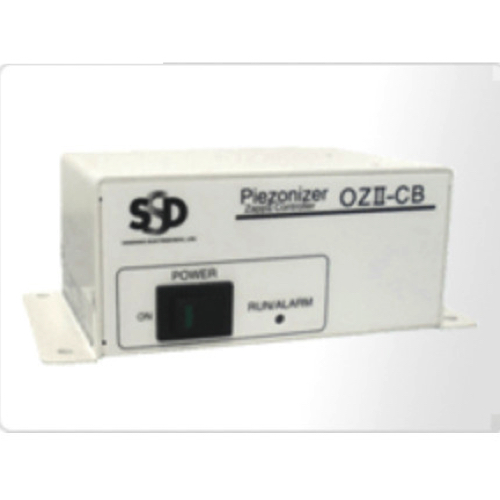

Available model: ZappⅡ, ZappⅡ-H
Power Voltage: DC24V(with AC adaptor AC100~240V)
Electric consumption: 0.3A
Indication: Green: Normal, Red: Abnormal
Alarm output: MOS FET Relay, Normally Closed contact(NC)
Maximum current: 100mA, Voltage: Below 30VDC
Input signal from outside: Input terminal (DC24V OUT, INPUT, 0V)
ZappⅡ start to work: Short INPUT and 0V or supply 0~3Volt to INPUT ZappⅡ stop to work: Open INPUT and 0V or supply 5~24Volt to INPUT
Supplied Air: Clean Dried Air
Available air pressure: 0.05 ~ 0.6MPa
Maximum air consumption: 450ℓ/min(ANR) only Contoller
Air output control: CONT: Continuously blow, PULSE Hi: High Pulse blow(10Hz),PULSE Lo: Low Pulse blow(5Hz)*3
Guaranteed operating temperature: 0 to 40 ℃
Guaranteed operating humidity: 85%RH or less with no condensation
Main unit dimensions: 135×50×75mm (W×H×D) only body size
Weight: Approx 580g
Accompanying items: AC adaptor, Connecting cable with ZappⅡ, grounding cable, Air tubing(Φ6mm x 2m), Operation manual, Contact pin(5pcs).
*3:The life time of electric valve in the controller is below 50 million times.
