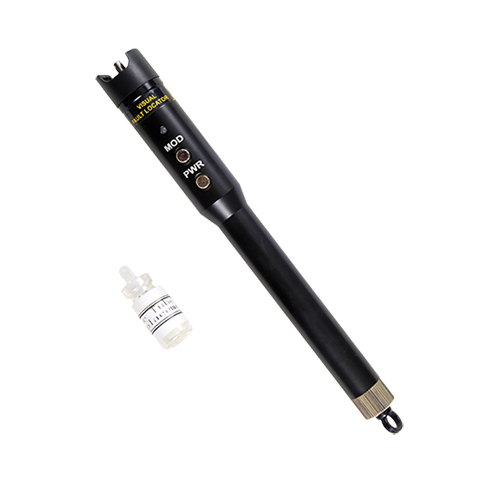

Shinho X5007 Visual Fault Locator VFL (650nm±10nm)

Central Wavelength: 650nm±10nm (635nm can be required on request)

Emitter Type: FP-LD

Output Power (mW): 1, 10, 20, 30 or 50

Optical Connector: 2.5mm universal connector. For 1.25mm connectors, FC (Male)-LC (Female) convertor, can be optional on customer's requests

Operating Model: Both CW and Pulse available

Pulse Frequency: 2~3Hz

Power Supply: 2 AA alkaline batteries

Battery Operating Time: 650nm@1mw, ≥65hours650nm@10mw≥15hours; Test with Panasonic LR6 AA ALKALINE battery

Operating Temperature (℃): -10~+45

Storage Temperature(℃): -40~+70

Dimension (mm): ￠15X210

Weight(g): 120(Without battery)
