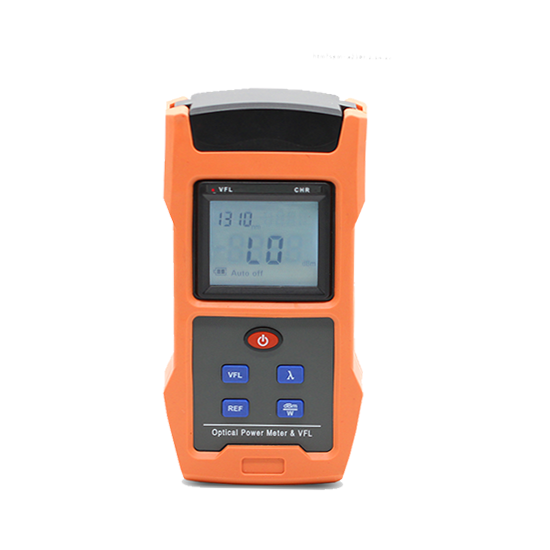

Shinho X0563 ເຄື່ອງວັດແທກພະລັງງານແສງ & VFL (+6 ~ -70 dBm)

Optical Power Meter:

Detector Type: InGaAs

Optical Connector: ST/SC/FC & 2.5mm Universal

Calibrated Wavelengths: 850,1300,1310,1490,1550,1625 nm

Measurement Range: +6 ~ -70 dBm

Accuracy: ±0.2 dB

Power Measurement Linearity: ±0.1 dB

Display Resolution: ±0.01 dB

Power Display Units: dBm,mW,uW

Visual Fault Locator:

Output power: 1mw/10MW/20mw/30mw

Range: 12-km@SM

Connector: ST/SC/FC & 2.5mm Universal

Laser safety rating: Class 2

Wavelength: 650nm±20nm

Output modes: Continuous (CW),2 Hz pulsed

Reverse battery protection: Yes

Others :

Power Supply: 18650mAh Li-con battery

Auto Off: 10 minutes

Working time: >200hours（only OPM Work）; ≥50小时（10mWVFL & OPM Work meanwhile）

Working Temperature: -10~+45

Weight: 250g

Dimensions: 160x75x10mm
