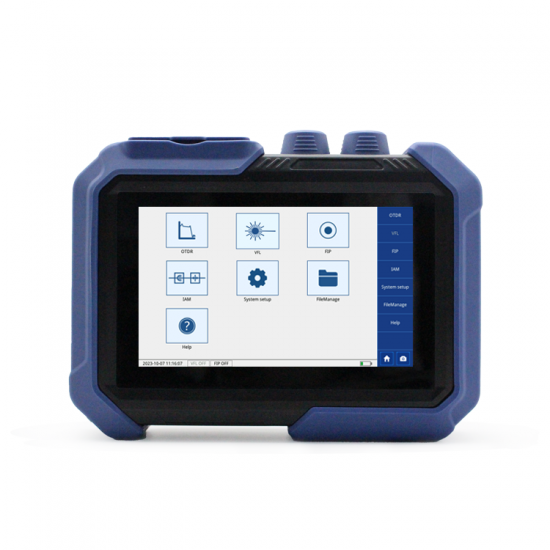

Shinho X-70-T40 OTDR ມືຖື (1310/1550/1625nm; 40/38/38dB)

Wavelength (nm): 1310/1550/1625

Dynamic Range (dB): 40/38/38

Pulse Width (ns): 5,10,20,40,80,160,320,640,1280,2560,5120,10240,20480

Event Blind Zone (m)^3: 1m

Attenuation Blind Zone (m)^3: 4m

Linearity (dB/dB): ±0.05 dB/ dB

Sampling Resolution Ratio (m): 0.125 to 8

Loss Resolution ratio (dB): 0.01

Sampling Point: 64K

Distance Uncertainty (m): ±(1 m + 5×10^-5× distance + sampling interval)

Distance Scope(km): 0.3 to 200

Duration of Measurement: Defined by user; 5sec, 10sec, 15sec, 30sec, 1min, 2min, and 3min.

Dimension/Display: 234(H)×65(W)×177(D)mm/7 " touch screen 1024*600

Weight: 1.3kg

Optical Interface: FC/UPC (PC, and APC are available)

Temperature: Running temperature -10℃ to 50℃, Memory temperature -40℃ to 70℃

Relative Humidity: 0% to 95% (non condensation)

Power Supply: Lithium battery; continuing working duration ≥ 24 hours

Storage of Trace: Internal memory 16G, > 20000 pieces

Data Interface: USB interface

Package: OTDR, Power Adapter, Power Cord, Strap, User Manual, SD Card,Touch Pen, Carrying Bag
