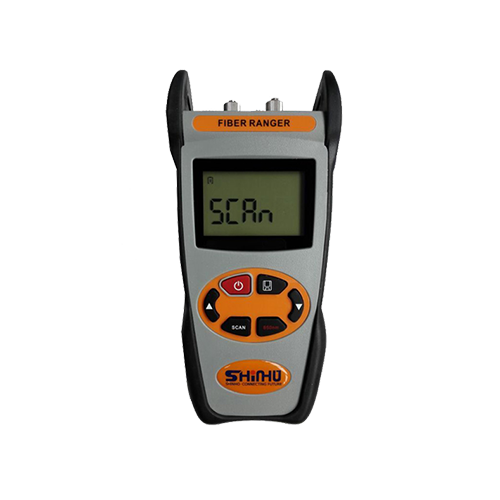

Shinho X-5005 Optical Fiber Ranger (1550nm)

Operating Wavelength: 1550nm（1310nm Optional）

Fiber Type: 9/125um SM Fiber

Optical Connector Type: FC/PC

Detector Type: InGaAs

Peak Power of laser(mW): ≥60

Max. Displaying Distance:

+ Reflection Event(km): 60 (≥1dB)

+ Non-reflection Event(km): 20 (≥2.5dB)

Measurement Unit: M

Reflection Event Dead Zone: 15m

Distance Accuracy（Reflection Event）: ±（2m+2*10（-4）XDistance）

Wavelength of VFL Option(nm): 650

Output Power of VFL Option(mW): ≥1mW

Date storage capacity: 200

Communication Port: USB

Power Supply: Alkaline Battery (3pcs AA 4.5V Batteries)

Battery Operating Time: ≥5000 measurements

Working Temperature(℃): -5~40

Storage Temperature(℃): -10~60

Humidity: 0~85%（Non-condensation）

Dimensions(mm): 200x90x50

Weight（g): 320
