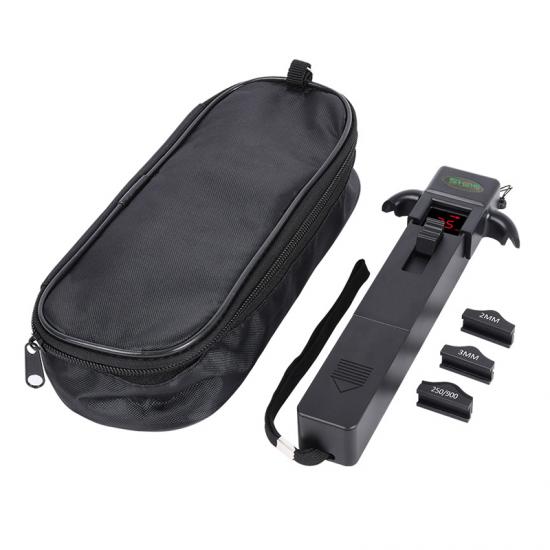

Shinho X-5004 ຕົວລະບຸເສັ້ນໄຍແສງ (800-1700 nm)

Identified Wavelength Range: 800-1700 nm

Identified Signal Type: CW, 270Hz±5%，1kHz±5%，2kHz±5%

Detector Type: Ø1mm InGaAs 2pcs

Adapter Type: Ø0.25 , Ø0.9, Ø2.0, Ø3.0

Signal Direction: Left & Right LED

Singe Direction Test Range (dBm, CW/0.9mm bare fiber): -46~10(1310nm); -50~10(1550nm)

Signal Power Test Range (dBm, CW/0.9mm bare fiber): -50~+10

Signal Frequency Display (Hz): 270, 1k, 2k

Frequency Test Range (dBm, Average Value):

Ø0.9, Ø2.0, Ø3.0: -30~0 (270Hz,1KHz); -25~0 (2KHz)

0.25: -25~0 (1KHz,2KHz); -20~0 (2KHz)

Insertion Loss (dB, Typical Value): 0.8 (1310nm); 2.5 (1550nm)

Alkaline Battery(V): 2pcs AAA batteries

Operating Temperature(℃): -70

Storage Temperature(℃): -95

Dimension (mm): 196X30.5X27

Weight (g): 195
