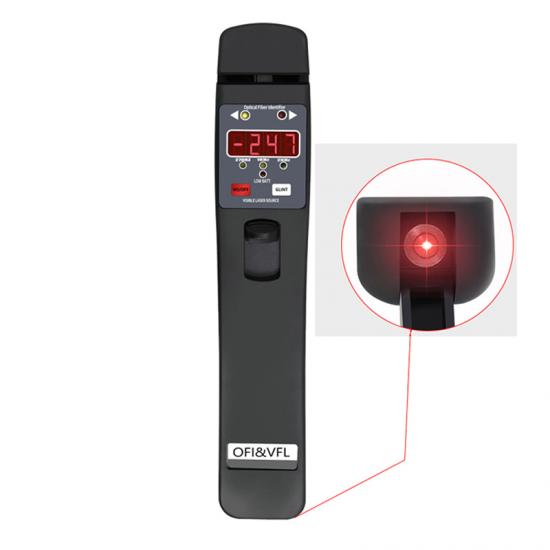

Shinho X-401L ຕົວລະບຸເສັ້ນໃຍແສງດ້ວຍ VFL (800nm-1700nm)

Wave respond: 800nm-1700nm

Pass through insertion loss: 1. 1.0dB

1. 250umOptical fiber: 2. 1.0dB

2. 900umOptical fiber: 3. 2.0dB

3. 3mmOptical fiber:

Application of optical fiber: 250um/900um/2.5um/3mm Optical fiber

Identified Signal Type: 270HZ/1KHZ/2KHZ

Identification of modulated signals: Yes

Power Measurement: Yes

Display: LED segment

Tone: Yes

Low power monitoring: Yes

Detector type: 1mm InGaAs

Minimum detection power:

Test conditions:: 1550

250umOptical fiber: -35dBm

900umOptical fiber: -35dBm

3mmOptical fiber: -30dBm

Test conditions:: 1310

250umOptical fiber: -30dBm

900umOptical fiber: -30dBm

3mmOptical fiber: -25dBm

Specifications of VFL (Optional):

Wavelength： : 650nm±10nm

Output Power： : 10 mW

Fiber Port： : FC/PC

Power supply： : 2*AA 1.5V Alkaline Battery

Operation Temperature： : -10℃ to +50℃

Storage Temperature： : -20℃ to +70℃

Outline size: 230*43*36mm

weight: 200g
