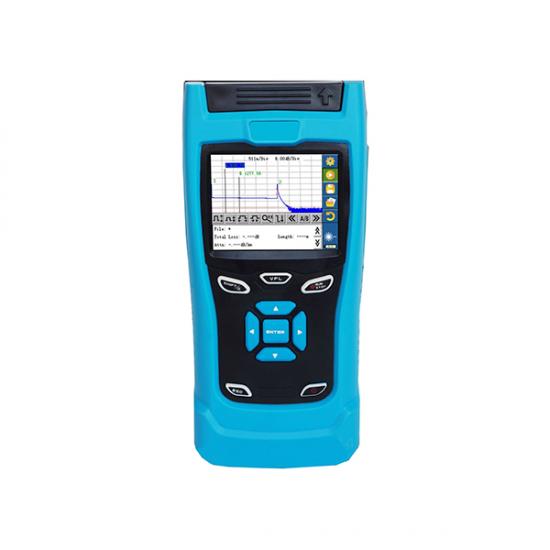

Shinho X-30-A Mini OTDR Optical Time Domain Reflectometer (1310/1550; 30/28)

Wavelength (nm): 1310/1550

Dynamic range (dB): 30/28

Display: 3.5’’ TFT LCD touch screen

Light source type: LD

Optical interface: FC/UPC (FC/SC optional, UPC/APC optional)

Distance range(km): 0.3, 1, 3, 5, 10, 30, 60, 120

Pulse width (ns): 5, 10, 20, 40, 80, 160, 320, 640, 1280, 2560, 5120, 10240, 20480, Auto

Measurement duration: 15s, 30s, 1min, 2min, 3min

Event blind zone (m)^3: 1.8m

Attenuation blind zone (m)^3: 10m

Distance uncertainty (m): ±(1 m + 5×10^-5× distance + sampling interval)

Data storage: ＞60000 test traces

Communication interface: USB

VFL: -

Wavelength:

Output power(dBm): -

Test distance(km): -

Optical communication test: NO

General Specifications:

Size: 220(H)×106(W)×60(D)mm

Weight: 0.88kg

Temperature: Running temperature -10℃ to 50℃; Memory temperature -40℃ to 70℃

Relative humidity: 0% to 95% (non condensation)

Power supply: Lithium battery; continuous working hours ≥ 10 hours
