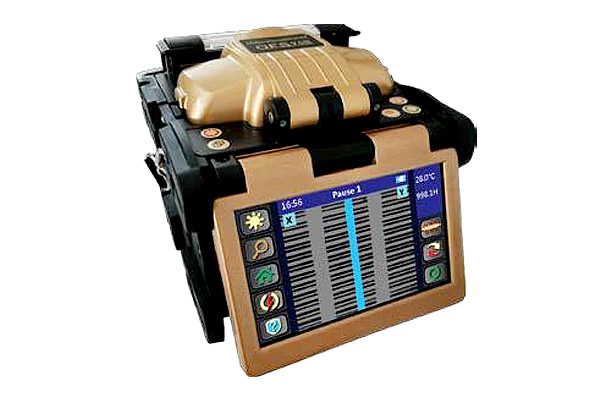

ShinewayTech OFS-95R ອຸປະກອນຕໍ່ສາຍເສັ້ນໃນການລວມເສັ້ນໃນແບບ Ribbon Fiber Fusion Splicer
Fiber Type: SMF (G.652), MMF (G.651), DSF (G.653), NZ-DSF (G.655), BIF (G.657), EDF
Protection Sleeve: 40mm - 60mm
Splicing Principle: Arc
Number of Fiber Cores: 1、 2、 4、 6、 8、 10、 12
Splice Control: Auto and Manual Splicing
Arc Optimization: Yes
Display Mode: X, Y, X+Y
User Interface: Graphical interface, multiple language support
Splice Result: Auto Splice Result (Loss) Calculation and Display
Data: 5000 Splice Records (CSV Format), 100 Screenshots
Data Port: USB, Driver-free
Fiber Diameter: Cladding: 80~150μm, Coating: 100~1000μm
Cleave Length: 10mm~13mm
Splice Loss: MMF ≦ 0.02dB (Typical); SMF/BIF ≦ 0.05dB (Typical);
: DSF/NZDSF/EDF ≦ 0.08dB (Typical)
Return Loss: >60dB
Splice Time: ≤15s
Heating Time: ≤25s, Adjustable
Zoom: 20x ~50x
Electrode Life: ≥3000 Splices
Tension Test: ≥2N
Start-up Time: 7s
Power Supply: 220V±10%, 50Hz; Rechargeable Lithium Battery
Battery Life: ≥100 Splicing and Heating
Chanrging Time: ≤4 Hours
Size: 125x125x135mm (L x W x H)
Weight: 1.8Kg (With Battery)
Work Temperature: -20℃～+55℃
Storage Temperature: -40℃～+70℃
Humidity: ≤95% (Non-condensing)
Altitude: 0 m～3000 m
Wind Speed: ≤15 m/s
Configuration:
Splicer Unit x 1, Fiber Holder x 1 (Pair), Lithium Battery x 1, PowerAdapter x 1, Fiber Cleaver x 1, Cooling Tray x 1, USB Cable x 1, Carry Case x 1, Quick Reference
