Wavelength (±20nm): 1310/1550/1650
Dynamic Range (dB)(1): 42/40/39
EDZ (m)(2): 0.8
ADZ(m)(2): 4
Display: 8- inch Color Touch Screen (800×480)
Connectivity: USB×2; 10/100Mbit/s RJ-45×1
Memory: 8GB
Power Supply: Rechargeable Li-Ion Battery/AC Adapter
Battery Life: 10 hours continuous operation
Working Temp.: -20°C - 50°C
Storage Temp.: -40°C - 60°C
Humidity: 0 - 95% (Non-Condensing)
Weight: 1.5kg
Dimensions (L×W×H ): 235×159×75mm
Selectable Range: SM: 1.3, 2.5, 5, 10, 20, 40, 80, 160, 240Km; MM: 1.3, 2.5, 5, 10, 20, 40Km
Pulse Width: SM: 5ns,10ns, 30ns, 100ns, 300ns,1µs, 2.5µs,10µs, 20µs; MM: 5ns, 10ns, 30ns, 1µs, 2.5µs
Averaging Time: Quick, 15s, 30s, 45s, 60s, 90s, 120s, 180s
Emitter Type: LD
Connector: FC/PC (Interchangeable SC, ST and LC )
Distance Measure Accuracy: ±(1m + 10^-5×distance + sampling spacing)
Attenuation Detect Accuracy: ±0.05 dB/dB
Reflection Detect Accuracy: ±4 dB
Visual Fault Locator: Output Power: ≥ -3dBm; MOD Frequency: 1Hz; Detecting Range: 5Km
MCI100 Optical Connector Inspector Module (Optional):
Field of View: 400µm×300µm
Resolution: ≤1.5µm
Focusing: Manual Focus
Microscope Dimensions: Ø32×175mm
LS100 Stabilized Laser Source (Optional):
Wavelength (±20nm): Same as OTDR’s
Output Power: ≥-7dBm
PM100 Normal Power Meter Module (Optional):
Calibrated Wavelength: 850nm, 1300nm, 1310nm, 1490nm, 1550nm, 1625nm, 1650nm
Measurement Range: -70dBm ~ +6dBm (-60dBm - +6dBm @ 850nm)
Detector Type: InGaAs
Display Resolution: 0.01dB
Accuracy: ± 5% ± 0.01nW (±0.5dB@850nm)
*Specification subjects to change without notice.
Notes：
(1) Dynamic range measurement at 20µs pulse width and 180s averaging time;
(2) Dead Zone measurement at 0.6Km and reflection <-45dB; EDZ measurement at 5ns, ADZ measurement at 10ns.
Order Information
Standard Package：

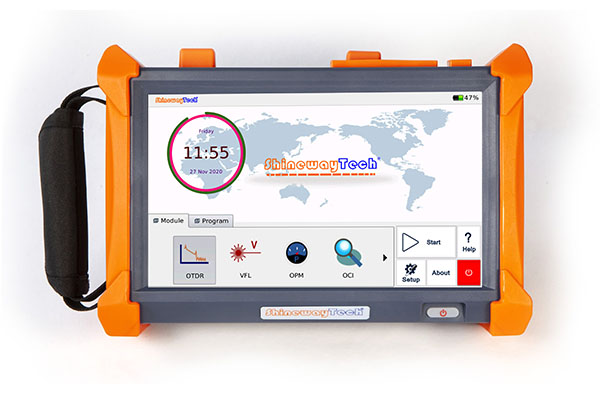

MTP-200X Host, Lithium Battery, CD (Software & User Manual), AC Adapter, Carrying Case, Warranty Card, Calibration Certificate.
Optional Modules:
●LS100: Stabilized Laser Source Module (as OTDR)
●PM100: Optical Power Meter Module
●MCI100: Optical Connector Inspector Module
●RC100: Remote Control Module
●LM100: Link Image Module
