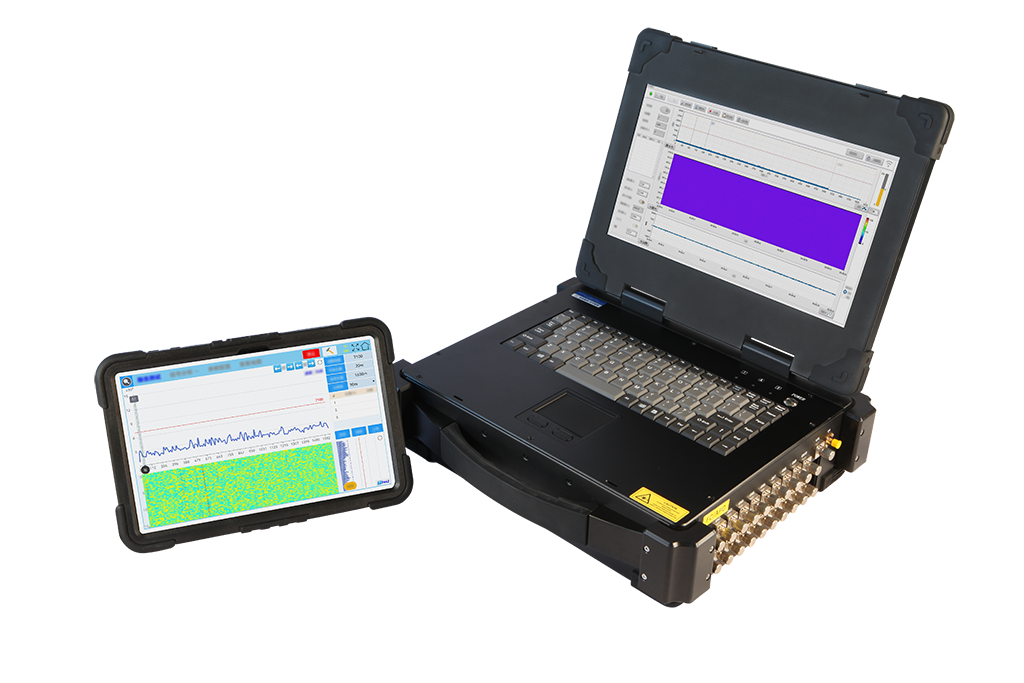

ShinewayTech CRC-20 ອຸປະກອນກຳນົດທາງສາຍແສງອອບຕິກ (20CH, 1550nm)
Number of Channels: 20 Channels
DVS Test:
Wavelength: 1550nm
Testing Distance: 40KM
Positioning Accuracy: ± 2m
Depth of Detection: ≤ 3m
Working Frequency: 1K ~ 10 KHz
Sensitivity: <0.1nε@5 ~ 100Hz
Connector: FC/APC
OTDR Test:
Wavelength: 1310/1550nm
Dynamic Range: ≥ 38dB
Event Dead Zone: ≤ 1m
Attenuation Dead Zone: ≤ 5m
Minimal Pulse Width: 10ns
Test Mode: Auto/Manual/Real-time
Sampling Resolution: 0.32 ~ 5m
Distance Uncertainty: ± (1m + 5×10-5 × distance + sampling resolution)
Connector: FC/APC
VFL:
Wavelength: 650nm
Output Power: 20mW
Modulation: CW, 1Hz
Connector: FC/APC
General Specification:
Power Supply: AC/DC Adaptor, input 100 ~ 240VAC, 50 ~ 60Hz; Lithium Battery, 13600mAh
Battery Life: ≥ 3 hours for continuous operation
Power Consumption: 50W
Interfaces: USB*2, 4G/LTE SIM Card Slot*1, 4G/LTE Antenna Interface*1
Display of Main Unit: 13-inch color LCD display
Dimensions of Main Unit: 380MM(L)*310MM(W)*112MM(H)
Weight of Main Unit: 7.5KG
Operation Temperature: 0℃ ~ 40℃
Storage Temperature: -10℃ ~ 70℃
Humidity: 0 ~ 95% (non-condensing)
Note: Specifications are subject to change at any time without prior notice.
Ordering Information:
Standard Package Includes: Main Unit *1, Pad Terminal *1, 4G/LTE Antenna *1, USB WIFI Adaptor *1, Plastic Hammer *1, AC/DC Adaptor *1, Optical Fiber Cleaning Pen *1, Patch Cord *4, FC Flange *5, User Manual *1, Warranty Card *1, Hard Carrying Case *1
