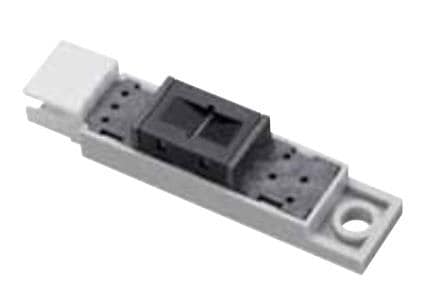

Sharp Microelectronics GP2A200LCS0F ສະຫນັບສະຫນູນແບບແສງ, ສະຫນັບສະຫນູນກັບ, ອອກສັນຍານ Photo IC OPIC Photointerruptr 5-15mm Focal Length

Width: 9 mm

Height: 8 mm

Length: 39.8 mm

Fall Time: 1 ms

Rise Time: 1 ms

Wavelength: 950 nm

Output Type: Pull Up, Inverter

Unit Weight: 3.293 g

Mounting Style: SMD/SMT

Output Voltage: 30 V

Sensing Method: Reflective

Sensing Distance: 2 mm to 22 mm

Number of Channels: 1 Channel

If - Forward Current: 30 mA

Low Level Output Current: 16 mA

Low Level Output Voltage: 400 mV

Operating Supply Voltage: 4.75 V to 5.25 V

High Level Output Current: 50 mA

High Level Output Voltage: 4.5 V

Maximum Operating Temperature: + 70 C

Minimum Operating Temperature: - 10 C
