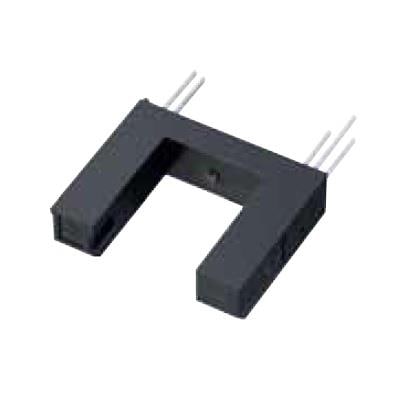

Sharp Microelectronics GP1A57HRJ00F ອຸປະກອນສະຫນອງແບບແສງ, ສົ່ງຜ່ານ, ອອກສັນຍານ Photo IC OPIC Photointerruptr Schmdt Gap 10.0mm

Width: 18.6 mm

Height: 15.9 mm

Length: 5 mm

Fall Time: 0.05 us

Rise Time: 0.1 us

Slot Width: 10 mm

Output Type: Pull Up, Buffer

Unit Weight: 1.169 g

Aperture Width: 1.8 mm

Sensing Method: Transmissive, Slotted

Number of Channels: 1 Channel

If - Forward Current: 7 mA

Ir - Reverse Current: 10 uA

Vf - Forward Voltage: 1.14 V

Vr - Reverse Voltage: 3 V

Pd - Power Dissipation: 250 mW

Low Level Output Current: 16 mA

Low Level Output Voltage: 150 mV

Operating Supply Voltage: 4.5 V to 17 V

High Level Output Voltage: 4.9 V

Maximum Operating Temperature: + 85 C

Minimum Operating Temperature: - 25 C
