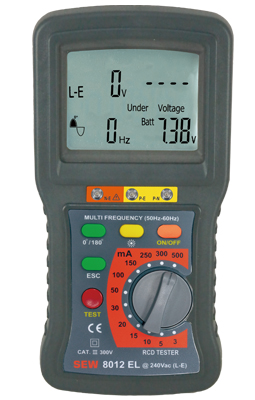

SEW 8012 EL Digital RCD Tester

Manufacturer: SEW

Model: 8012 EL

Origin: Taiwan

Warranty: 12 months

-Operating voltage (L-E) (50Hz or 60 Hz):

Version A : 240 Vac

Version B : 230 Vac

Version C : 220 Vac

Version D : 110 Vac

-Current settings: 3mA, 5mA, 10mA, 15mA, 20mA, 30mA, 50mA, 100mA, 150mA, 250mA, 300mA, 500mA.

-Current selection: Rotary switch selector

-Phase angle setting: 0° and 180° selectable

-Wiring correctness indication: Yes (LEDs)

-Trip indicator: Yes (LCD)

-Over-temperature protection: Yes

-Voltmeter (L-E): 10Vac ~ 280Vac (50Hz or 60Hz)

-Timer resolution: 1ms (Max. Time=2.999s)

-Timer accuracy: ±2ms

-Current accuracy: ±5% ±1mA

-Voltmeter resolution: 1Vac

-Voltmeter accuracy : ±2%±1Vac

-Operating temperature: -0°C ~ 40°C

-Storage temperature: -10°C ~ 50°C

-Dimensions: 221(L) × 110(W) × 57(D)mm

-Weight (battery included): Approx. 695g

-Power source: 1.5V (AA) × 6 (Alkaline battery)

-Safety standard: EN 61010-1 CAT III 300V EN 61326-1

FEATURES

● Microprocessor-controlled.

● Extra large LCD(78 × 67mm).

● Very low consumption.

● 50Hz and 60Hz operation.

● Menu-driven.

● Accurate digital readout of disconnection time.

● Over temperature protection.

● Over voltage protection.

● Fuse protection.

● Zero crossing circuitry permit testing at 0° or 180°.

● Auto power off.

● Auto off and off override.

● Wiring polarity indicator.

● Measure voltage between Line and Earth before testing.

●Frequency measurement indication.
