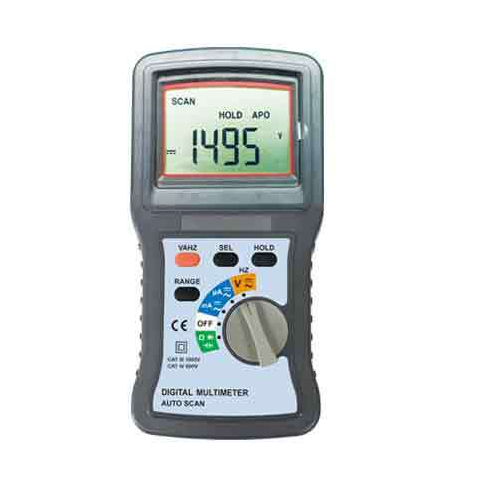

SEW 8002 DM Multimeter ສໍາລັບລະບົບພະລັງງານແສງຕາເວັນແລະອຸປະກອນພະລັງງານ (DC 1500V/AC 750V)
DC Voltage: Input impedance : 10MΩ
+ Ranges: 600mV~1500V for general
+ Resolution: 0.1mV~1V
+ Accuracy: ±(0.5%rdg+5dgt)
AC Voltage: Input impedance : 10MΩ
+ Ranges: 600mV~750V
+ Resolution: 0.1mV~1V
+ Accuracy: ±(1.0%rdg+5dgt)
DC mA / µA: Overload protection 0.6A/1000V fast blow fuse for 600mA
+ Ranges: 600µA~600mA
+ Resolution: 0.1µA~0.1mA
+ Accuracy: ±(1.2%rdg+5dgt)
AC mA / µA: Overload protection 0.6A/1000V fast blow fuse for 600mA
+ Ranges: 600µA~600mA
+ Resolution: 0.1µA~0.1mA
+ Accuracy: ±(1.5%rdg+3dgt)
Resistance:
+ Ranges: 600Ω~60MΩ
+ Resolution: 0.1Ω~10kΩ
+ Accuracy: ±(1.2%rdg+3dgt); 60MΩ: ±(2.3%rdg+4dgt)
Capacitance:
+ Ranges: 6nF~60mF
+ Resolution: 1pF~10µF
+ Accuracy: ±(3%rdg+10dgt)
Frequency:
+ Ranges: 6kHz~100kHz
+ Resolution: 1Hz~100Hz
+ Accuracy: ±(0.5%rdg+2dgt)
Continuity:
+ Ranges: 600Ω
+ Audible threshold: Less than 30 Ω
Diode:
+ Ranges: 2V
+ Accuracy: ±(1.5%rdg+3dgt)
General:
+ Dimensions: 221(L) × 110(W) × 57(D)mm
+ Weight (battery included): Approx. 513g
+ Power source 1.5V (AA) × 2 (Alkaline battery)
+ Safety standard: IEC / EN 61010-1; CAT III 1000V; IEC / EN 61010-1; CAT IV 600V; EN 61326-1
+ Accessories: Instruction manual; Test leads; Hand strap ; Batteries
