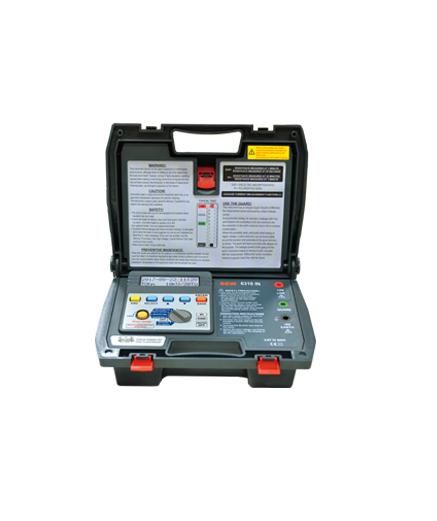

SEW 6310 IN ອຸປະກອນທົດສອບການປ້ອງກັນໄຟຟ້າແຮງສູງ (10kV, 20TΩ)
Test voltage: 1000V, 2500V, 5000V, 10000V
Insulation resistance
2TΩ / 1000V
5TΩ / 2500V
10TΩ / 5000V
20TΩ / 10000V
Accuracy
0~200GΩ / 1000V: ± ( 5 . 0 % r d g + 5dgt)
0~500GΩ / 2500V: ± ( 5 . 0 % r d g + 5dgt)
0~1000GΩ / 5000V: ± ( 5 . 0 % r d g + 5dgt)
0~2000GΩ / 10000V: ± ( 5 . 0 % r d g + 5dgt)
200G~2TΩ / 1000V: ±20%rdg
500G~5TΩ / 2500V: ±20%rdg
1000G~10TΩ / 5000V: ±20%rdg
2000G~20TΩ / 10000V: ±20%rdg
Resolution
1000MΩ: 1MΩ
10GΩ: 0.01GΩ
100GΩ: 0.1GΩ
1TΩ: 1GΩ
10TΩ: 10GΩ
20TΩ: 100GΩ
Short circuit current: up to 5mA
PI (Polarization Index): √
DAR (Dielectric Absorption Ratio): √
Voltmeter
ACV: 30~600V (50/60Hz)
DCV: 30~600V
Accuracy: ±(2.0%rdg + 3dgt)
Resolution: 1V
Current measurement: 0.5nA ~ 0.55mA (Depending on the insulation resistance)
Power source: 1.5V "C" × 8 Alkaline batteries
Dimensions 330(L) × 260(W) × 160(D)mm
Weight Approx. 4724g (battery included)
Safety standard
EN 61010-1 CAT IV 600V
EN 61010-2-030
EN 61326-1
Accessories
Instruction manual
Test leads
Data transmission cable CA-232
Compact disk (CD) for PC interface
Alligator clips
Batteries
