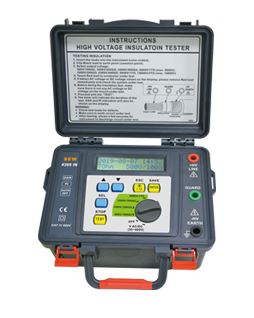

Test voltage: 500V, 1000V, 2500V, 5000V
Insulation resistance:
100GΩ / 500V
200GΩ / 1000V
500GΩ / 2500V
1TΩ / 5000V
Accuracy: ±(5.0%rdg + 5dgt)
Resolution:
1000MΩ: 1MΩ
10GΩ: 0.01GΩ
100GΩ: 0.1GΩ
1TΩ: 1GΩ
Short circuit current up to 5mA
PI (Polarization Index) √
DAR (Dielectric Absorption Ratio) √
Voltmeter
ACV: 30~600V (50/60Hz) / DCV: 30~600V
Accuracy: ±(2.0%rdg + 3dgt)
Resolution: 1V
Current measurement: 0.5nA ~ 0.55mA (Depending on the insulation resistance)
Power source:; 1.5V "C" × 8 Alkaline batteries ; DC3V (CR2032) × 1
Dimensions: 250(L) × 190(W) × 127(D)mm
Weight (battery included): Approx. 2070g
Safety standard: IEC / EN 61010-1 CAT IV 600V; EN 61010-2-030'; EN 61326-1
Accessories
Instruction manual; Test leads; Alligator clips; Carry case;
Batteries; Shoulder belt
