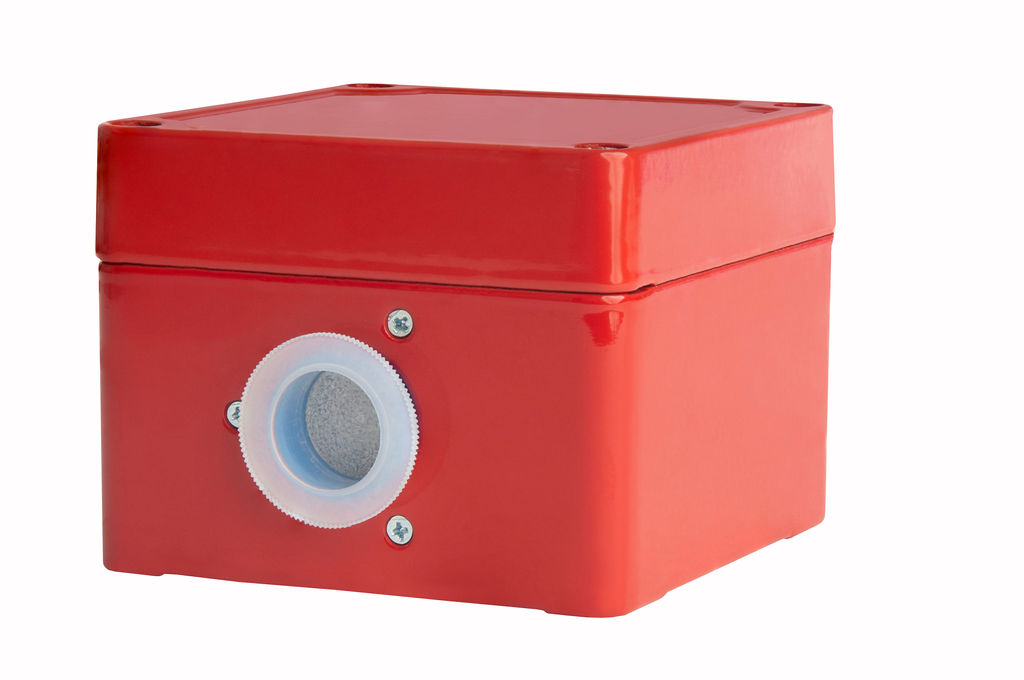

SensoScientific GAS00-2 ຕວດອອກຊິເຈນ (4-20mA (0 ~ 25% O₂))

Oxygen Range: 0 to 25% O₂

Operating Principle: 2-Electrode Cell

Output Signal: 4-20mA

Response Time: < 10 Sec

Repeatability: < ±1% of Measuring Signal

Long-Term Output Drift: < ±2% of Signal per Month

Temperature Range: -20°C to 50°C (-4°F to 122°F)

Temperature Co-Efficient: < ±2% of Signal per °C

Humidity Range: 15% to 90% RH, Non-Condensing

Pressure Range: 1 atm ±10%

Pressure Co-Efficient: < ±0.003% of Signal per mBar

Expected Operating Time: 18 Months in Air

Power Supply: 24V d.c. ±15%

Housing Material: Aluminum

Housing Weight: Approx. 1.1lb (500g)

Dimensions: Length: 3.55″ (90mm)

Width: 3.35″ (85mm)

Height: 2.56″ (65mm)

SensoScientific’s 4-20mA Universal O₂ sensor is the leading device to monitor oxygen emissions. With a range of 0 to 25% O₂, this sensor measures and records O₂ readings then uses your existing Wi-Fi network to send collected data to the SensoScientific Cloud. This allows for real-time data access and immediate alert notifications sent via SMS, text message, voice, pager, cell phone, fax, email, and more. The SensoScientific Cloud allows you to access comprehensive reporting, view real-time data, print A2LA Accredited calibration certificates, and more. All data is time-stamped and cannot be altered according to FDA 21 CFR Part 11 requirements.

●   Range: 0% to 25% O₂ ●   Calibration Certificate Included ●   SensoScientific Universal Sensor Compatibility

●   Aluminum Housing ●   Operating Range: -20°C to 45°C ●   IP65-Classified Housing

●   4-20mA Output ●   Suitable for Wall Mounting ●   Lightweight Design
