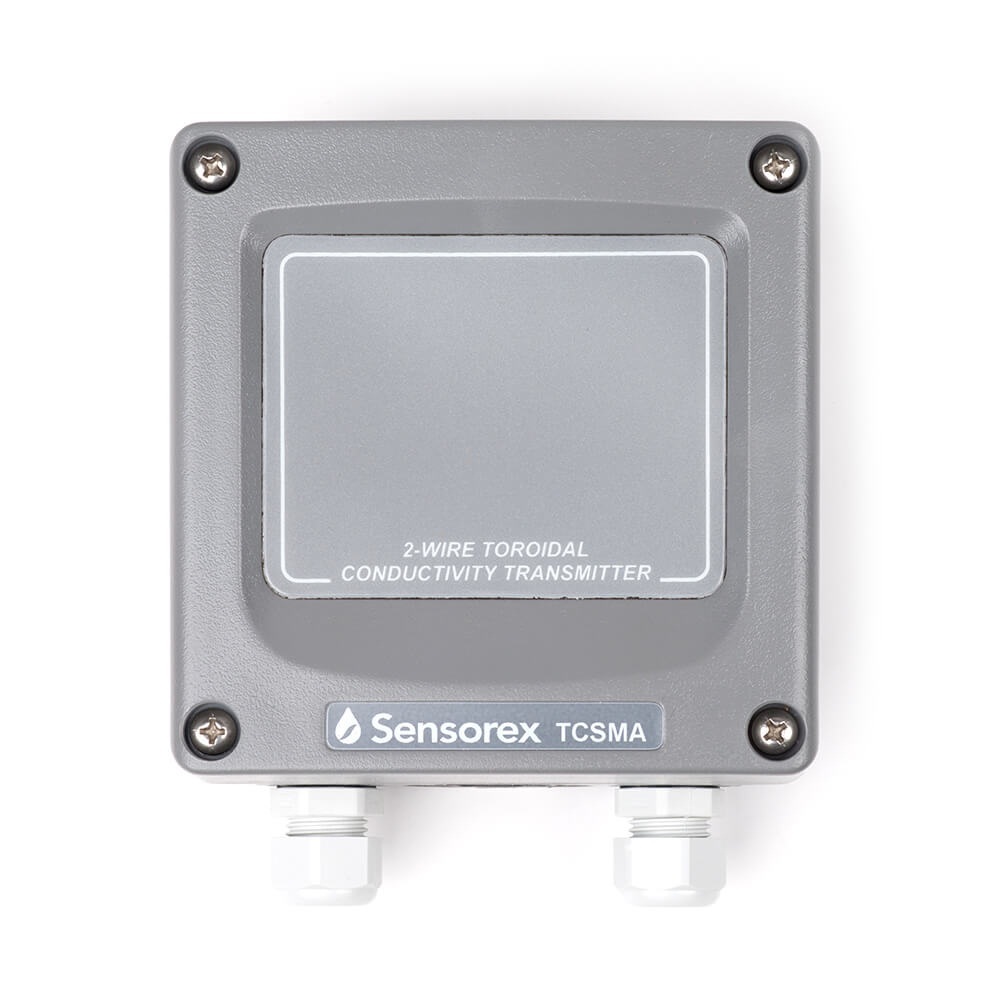

Sensorex TCSMA Online Toroidal Conductivity Transmitter (0-2000mS, 4-20mA)
ຜູ້ຜະລິດSENSOREX(ເບິ່ງສິນຄ້າອື່ນໆຂອງຍີ່ຫໍ້ນີ້)
ModelTCSMA
ຕິດຕໍ່
ການຊຳລະເງິນທີ່ປອດໄພ
ການຮັບປະກັນຄຸນນະພາບ
ປ່ຽນ ແລະ ສົ່ງຄືນງ່າຍ
ມີບໍລິການຈັດສົ່ງ
Measurement Range: 0-2,000 uS / 2.000 mS / 20.00 mS / 200.0 mS / 2000 mS - User selectable
Analog Output 1: Isolated DC 0/4 -20mA , corresponding to conductivity or resistivity. Max load 500 Ω
Enclosure: NEMA 4X (IP65) polycarbonate, wall, pipe or DIN Rail mount. Weatherproof and corrosion resistant.
Response Time: 6 seconds to 90% step input at lowest setting
Mounting Options: Wall, pipe, panel, or rail mount
Ambient Operating Temperature: -20° C to 60° C
Storage Temperature: -30° C to 70° C
Temperature Compensation: Pt100RTD or Pt1000RTD. ATC is user selectable 0-4%/Deg C
Power Requirement: 16-35V DC (2-wire device)
Dimensions: (112mm) H x (112mm) W x (89mm) D
Weight: 1lb (0.45Kg)
Analog Output 1: Isolated DC 0/4 -20mA , corresponding to conductivity or resistivity. Max load 500 Ω
Enclosure: NEMA 4X (IP65) polycarbonate, wall, pipe or DIN Rail mount. Weatherproof and corrosion resistant.
Response Time: 6 seconds to 90% step input at lowest setting
Mounting Options: Wall, pipe, panel, or rail mount
Ambient Operating Temperature: -20° C to 60° C
Storage Temperature: -30° C to 70° C
Temperature Compensation: Pt100RTD or Pt1000RTD. ATC is user selectable 0-4%/Deg C
Power Requirement: 16-35V DC (2-wire device)
Dimensions: (112mm) H x (112mm) W x (89mm) D
Weight: 1lb (0.45Kg)
