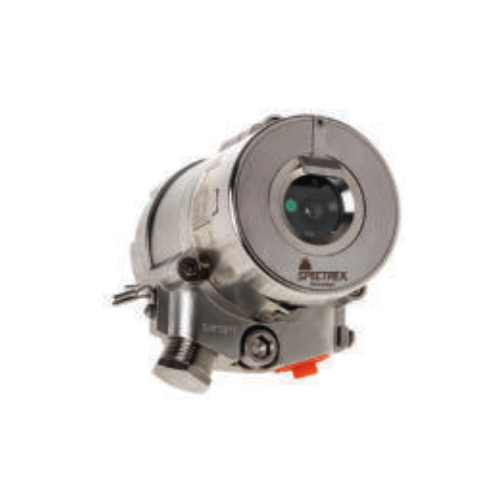

Sensidyne SharpEye 40/40D-LB Sensidyne Fire ແລະ Flame Detection (0.185 - 0.260 μm, 2.5-3.0 μm)
ຜູ້ຜະລິດ: Sensidyne Model: SharpEye 40/40D-LB - ຕິດຕໍ່ພົວພັນ
Detectors
Ultraviolet (UV): 0.185 - 0.260 μm
IR: 2.5-3.0 μm
Performance
Response Time: Typically 5 seconds
Adjustable Time Delay: Up to 30 seconds
Sensitivity Range: Selectable - see datasheet
Field of View: Horizontal up to 100°, Vertical up to 95°
Built‑in‑Test (BIT): Automatic (and Manual)
Environmental
Temperature Range: Operating: ‑67ºF to +167ºF (‑55ºC to +75ºC)
Electrical
Operating Voltage: 24 VDC nominal (18‑32 VDC)
Power Consumption:
Standby: Max. 90mA (110mA with heated window)
Alarm: Max. 130mA (160mA with heated window)
Cable Entries: 2 x 3/4” ‑ 14NPT conduits or 2 x M25 x 1.5 mm ISO
Wiring: 12 ‑ 22AWG (2.5mm² ‑ 0.3mm²)
Electrical Input Protection: According to MIL‑STD‑1275B
Electromagnetic Compatibility: EMI/RFI protected to EN61326‑3 and EN61000‑6‑3
Electrical Interface: The detector includes twelve (12) terminals with five (5) wiring options (factory set)
Mechanical
Materials: Stainless Steel 316L w/ electro polish finish
Dimensions: Detector 4” x 4.6” x 6.18” (101.6 x 117 x 157 mm)
Weight: Detector (St.St.) 6.1 lb (2.8 kg), Tilt mount 2.2 lb (1.0 kg)
