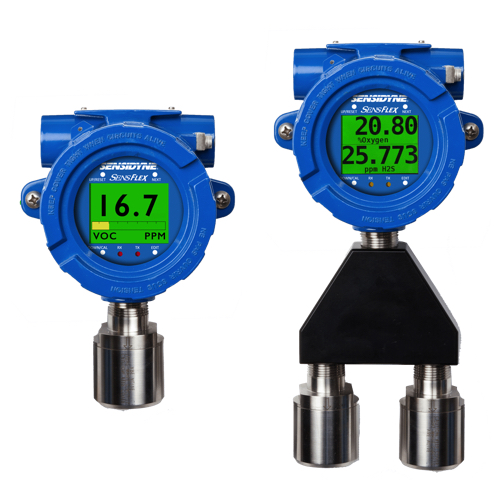

Sensidyne SensFlex ເຄື່ອງກວດຈັບອາຍແກັສ (12-30 VDC)
Sensors: PID, Electrochemical, Catalytic Bead, Infrared Technologies. See range and performance specifications on each sensor datasheet
Electrical
Power Requirement: 24 VDC current source output
Voltage Range: 12-30 VDC at 10 Watts max
Transmission Link: 4–20 mA current source, non-isolated with respect to Common (3 wires)
Controls and Display
User Interface: Non-intrusive
Security: Password protection
Display Modes: Displays 30-minute trend, bar-graph and large engineering units. Dual head units offer split screen.
Display: OVGA color TFT
Environmental
Operating Temperature: -40˚ to 140˚F (-40˚ to 60˚C)
Storage Temperature: -40˚ to 140˚F (-40˚ to 60˚C)
Operating Humidity: 0-95% RH, non-condensing
Temperature Drift: Less than 0.1% per degree C over ambient temperature range
Enclosure
Hazardous Area Approved Models:
Transmitter: Painted Aluminum
Sensor Housing: 316 Stainless Steel
General Purpose Models:
Transmitter: Polycarbonate
Sensor Housing: High density plastic
