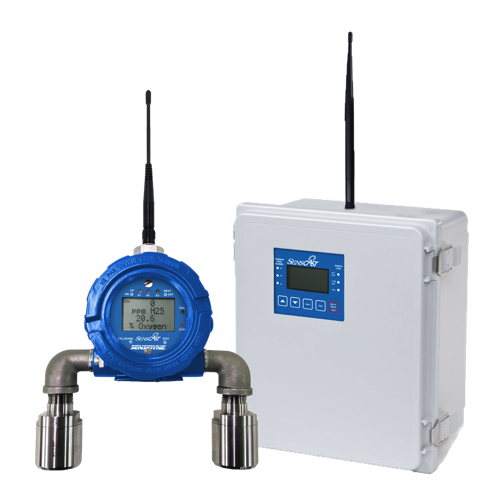

Sensidyne SensCast Wireless ເຄື່ອງກວດຈັບອາຍແກັສ (10 – 30VDC/ 100 – 240VAC)
Sensors
Gas Sensors: Electrochemical
Temperature: See Sensor Data Sheets
Humidity: See Sensor Data Sheets
Controls
Magnetic Keypad: ACK, << (Go Back), ▲, ▼
Security: Password Protected Configuration Menu
Displays
LEDs: Four (4) Red, corresponding to magnetic keypad, and Alarm Relays when equipped.
Graphic LCD: 128 by 64 pixel screen
SensCast Detector
Approval Rating: Class I Div 2, Grps A, B, C, D
Temperature: -40°C to 60°C
Power: 3.6 V 19AH Lithium D-cell battery
Memory: Non-volatile
SensCast Receive
Approval Rating: Class I Div 2, Grps A, B, C, D
Temperature: -25°C to 60°C
Humidity: 0-90% RH, non-condensing
Power: 10 – 30VDC or 100 – 240VAC, 8mA max 40W at 240VAC, 208mA max 5W at 24VDC
Relays: 8 standard Form C dry contacts 5A 28VDC and 250VAC resistive loads
SensCast Relayer
Approval Rating: Class I Div 2, Grps A, B, C, D (Enclosure)
Power: 10 – 30VDC @ 3W
Memory: Non-volatile
SensCast Bridge Repeater
Approval Rating: Class I Div 2, Grps A, B, C, D (Enclosure)
Temperature: -40°C to 60°C
Power: 10 – 30VDC @ 10W max
Memory: Non-volatile
WiFi 900MHz Transmission
2mA during “sleep” mode
40mA receiving
Up to 1A transmit at 1W (transmit may be set from 10mW, 100mW, 400mW to 1W)
30dBm at 1W transmit
-100 dBm receive
902 – 928MHz hopping frequencies
WiFi 2.5GHz Transmission
2mA during “sleep” mode
170mA at 125mW transmit (fixed)
21dBm at 125mW transmit
-95 dBm receive
2400 – 2483.5MHz hopping frequencies
