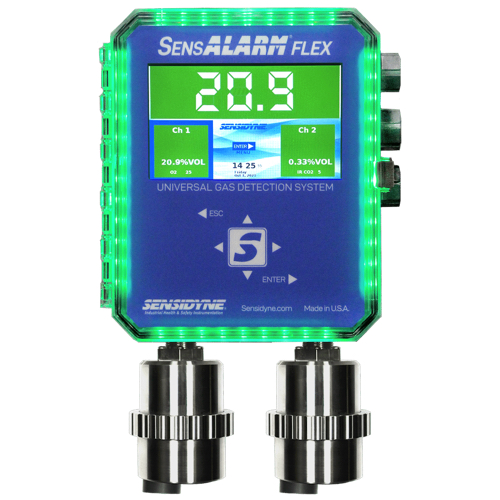

Sensidyne SensAlarm FLEX ການກວດຫາແກັດທັງໝົດໃນໜຶ່ງດຽວ (100-240 VAC)
SENSORS:
Gas – All Sensidyne Plus Series sensors
ToD – Test-On-Demand available for specific toxic sensors
ELECTRICAL:
Design – Microprocessor based with nonvolatile memory. Automatically resumes operation after power failure
Power – 100-240 VAC, 50/60 Hz or 20-30 VDC
Battery – Optional battery back-up available
Outputs – 4-20 mA into 600 ohms; Standard Modbus RS-485 RTU or Ethernet TCP
Light Stack – (NEMA 4X) optional up to 4 strobes with red, amber, blue, and green strobes
Horn – 95 dB piezo horn
Relays – 4 standard SPDT configurable relays. Optional 4 more SPDT configurable relays. Contact ratings: 6 amps at 120 VAC or 28 VDC resistive, 3 amps at 240 VAC resistive.
ENCLOSURE:
Material – Polycarbonate
Environment – NEMA 4X design
Type – Wall mount with tabs
Overall Size – W x H x D: 8 x 10 x 6 in. / 20.3 x 25.4 x 15.24 cm
Weight Range – 12.25-24.17 lbs / 4.57-9.02 kg (with 1-2 sensor heads)
Conduit – 3/4 inch NPT connector supplied (side).
Temp: -4° to 122°F / -20° to 50°C
Humidity – 0-90 %RH, non-condensing.
Location – Indoor or Outdoor
Sensor Head – Enclosure and retaining ring are black anodized aluminum, PVC, or 316 stainless steel; splash guard and most other accessories are made of PVC.
DISPLAYS & CONTROLS:
Display – 7 in. / 17.8 cm color LCD
Security – Password Protected Configuration Menu
Auto Config – System automatically senses the presence of optional modules and features
Reset/silence – External push button switch for acknowledge (Alarm sequence 3A)
Annunciators – Audible (+95dB) & Visual single strobe with optional second strobe
