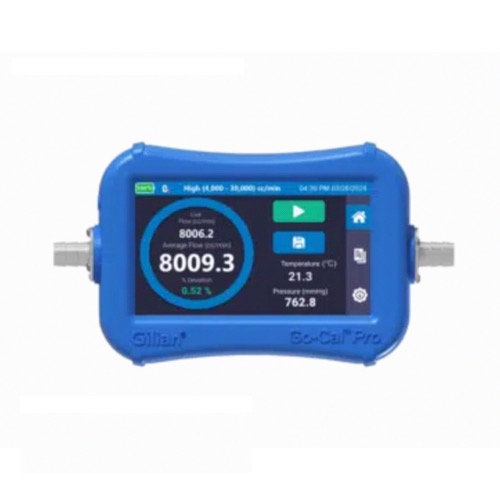

Sensidyne Gilian Go-Cal Pro ເຄື່ອງປັບການໄຫຼຂອງອາກາດ (4.000 to 30.000 cc/min, carry case)

Flow Ranges:

High: 4.000 to 30.000 cc/min

(Volumetric and STP flow averaging available)

Accuracy: ±1% of reading or 2 cc/min, whichever is greater at standard conditions (21.1°C and 101.3 kPa)

Environmental Sensors: Ambient Temperature and Pressure present in flow stream

Averaging Function: User selectable sample sampling time in seconds. Four pre-sets and user defined (5 – 5,000 sec.)

Gas Compatibility: Non-corrosive, Non-condensing

Flow Direction: Pressure and Suction

AC Charger: 5 VDC

Charging Cable: USB-C to USB-A Cable

Battery: Rechargeable lithium nickel cobalt aluminum oxide (NCA) battery

Battery Charge Time: Less than 6 hours

Operation Time: Up to 24 hours* Up to 400 calibrations on a single charge**

Operating Temperature: 0 to 45°C (32 to 113°F)

Storage Temperature: -20 to 60°C (-4 to 140°F)

Operating Humidity: 0 – 85% RH, non-condensing

Operating Pressure: 700 mbar to 1546 mbar (525 mmHg to 1160 mmHg)

Operating Altitude: -1.000 m (-3280 ft) to approximately 3050 m (10.000 ft) above sea level

Display: Multi-color LCD capacitive touchscreen

Connectivity: USB-C to PC for Gilian Connect. Bluetooth™ option for Gilian Mobile (optional at time of purchase by customer)

SmartCal: SmartCal capable with GilAir Plus Communications Dock. Accessory Cables Required (not included)

Report Generation: Flow verification events are recorded and saved as viewable reports on the unit and are available for download through provided software

External Dimensions: (HxWxD) 5.0 in x 3.6 in x 2.0 in

Tube Adapters:

0.375 in OD straight barbed (STD & HIGH)

Weight: 0.75 lbs (0.4 kg)

IP Rating: IP54

With Carry Case

* Running continuously with screen dimming function.

** Based on 30 second averaging and pump adjustments up to 2 minutes each, full brightness.
