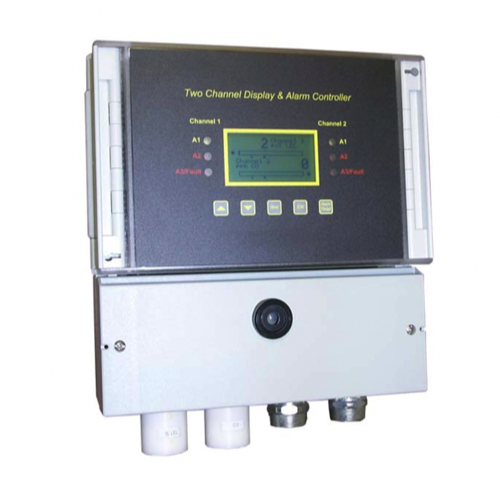

Sensidyne 9000 Dual ຕົວຄວບຄຸມການກວດພົບອາຍແກັສ (100-240 VAC / 24 VDC, 2 Channel Controller)
Material: Fiberglass or metal version.
Inputs:
Available inputs include 4-20mA with precision 100 ohm terminating resistor (0-2 Volt inputs may be accepted by removing the socketed terminating resistor) and bridge sensor inputs with adjustable Sensor Excitation and Balance settings.
Alarm Relays:
Common: 5 amp 30VDC or 250VAC resistive Form C.
Discrete: Six 5 amp 30VDC or 250VAC resistive Form C.
Analog Outputs:
Two (Dual) 10 bit 4-20mA output.
Max load 800 ohms with nominal 24VDC power supply.
Serial Port:
Optional slave RS-485 port equipped with Tx / Rx LED’s.
Protocol: Modbus® RTU.
Display:
128 x 64 pixel graphic LCD with backlight displays bar graphs, and engineering units.
6 discrete LED’s indicate alarm status, CAL MODE, keypad.
Temperature:
Ambient -25 to +50 degrees C.
Power Supply:
100-240 VAC / 24 VDC are standard primary power supplies.
Enclosure Options:
NEMA 4X / IP66 wallmount approved for Div 2.
NEMA 7 explosion-proof wallmount Div 1 (also meets NEMA 4).
